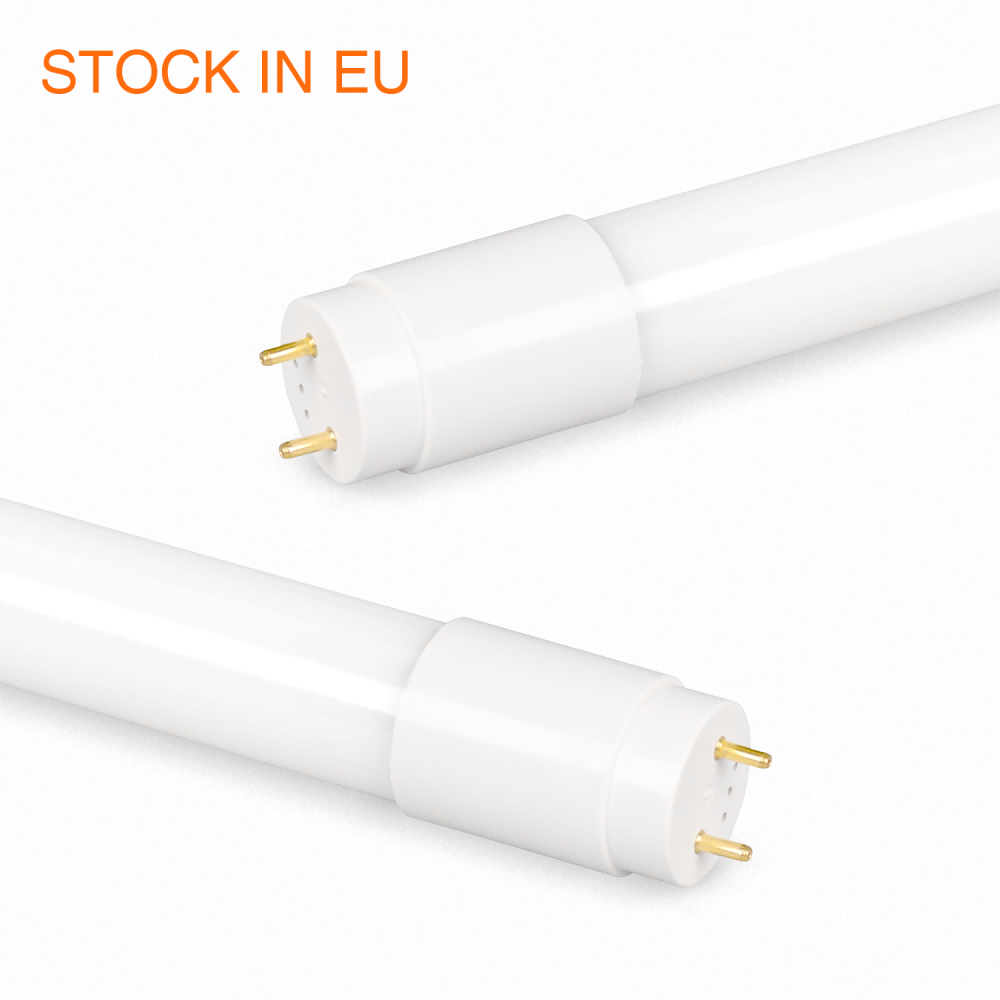

Stock Quantity: 1537

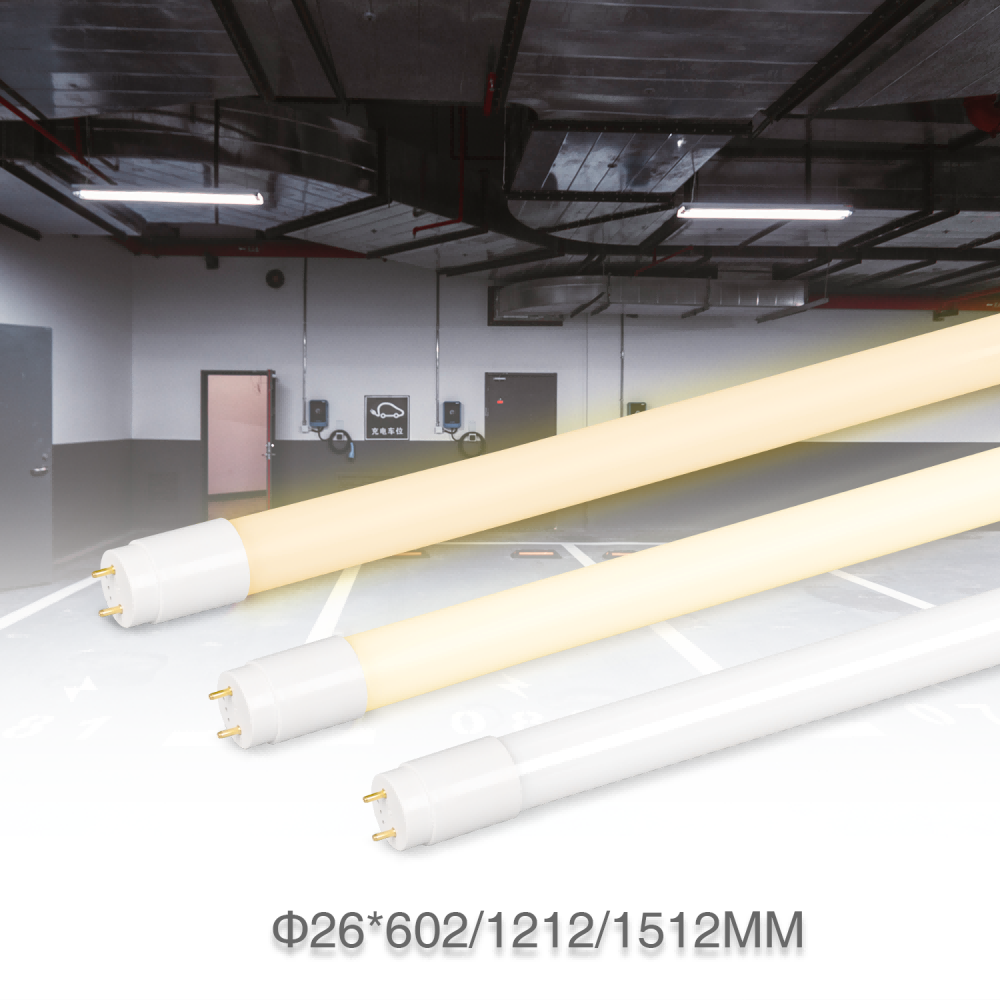

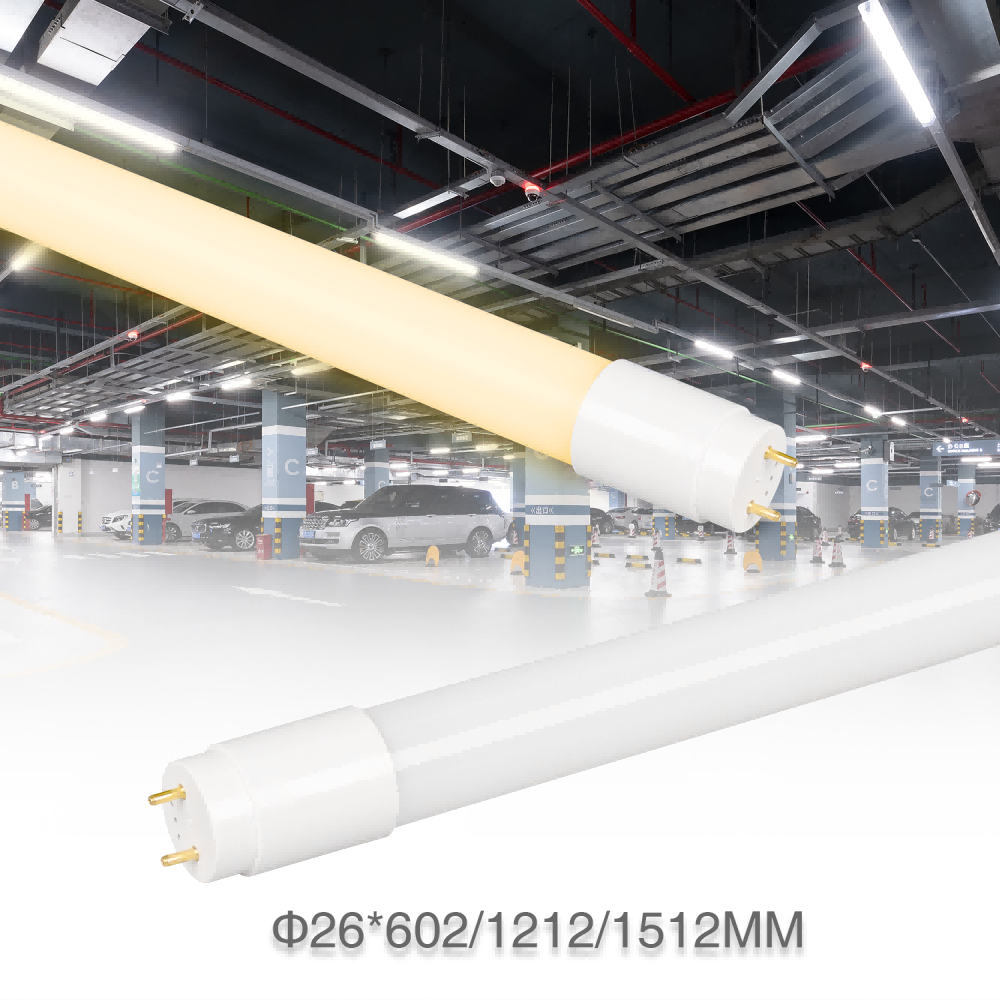

Size(mm):Ф26*1512
Power:16W
Light Efficiency: 210 LM/W
Luminous Flux: 3360 LM
CCT: 4000K
PF>0.9
CRI>80
Energy savings (compared to T8 fluorescent lamp)
Quick, simple and safe replacement with or without rewiring
No bending thanks to glass technology
Very high resistance to switching loads
Instant-on light, therefore ideally suitable in combination with sensor technology
Also suitable for operation at low temperatures
General illumination within ambient temperatures from -20…+45 °C

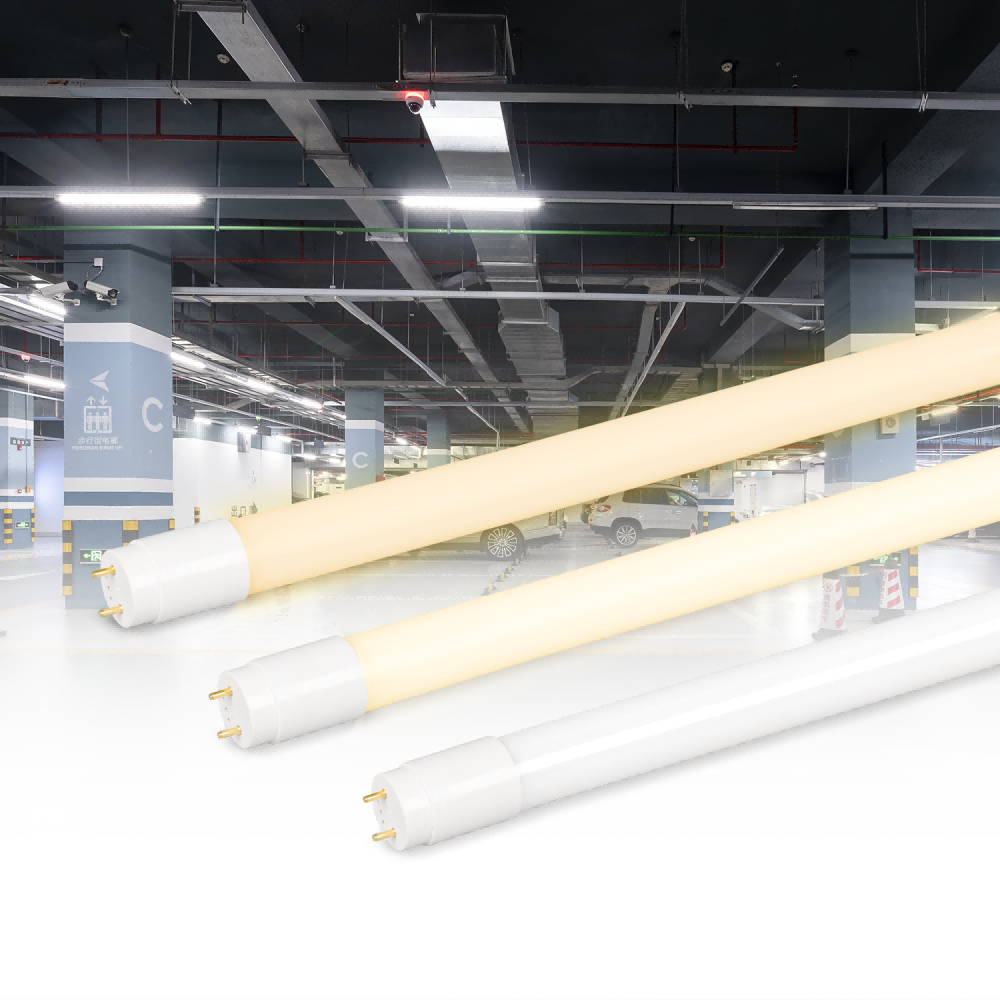

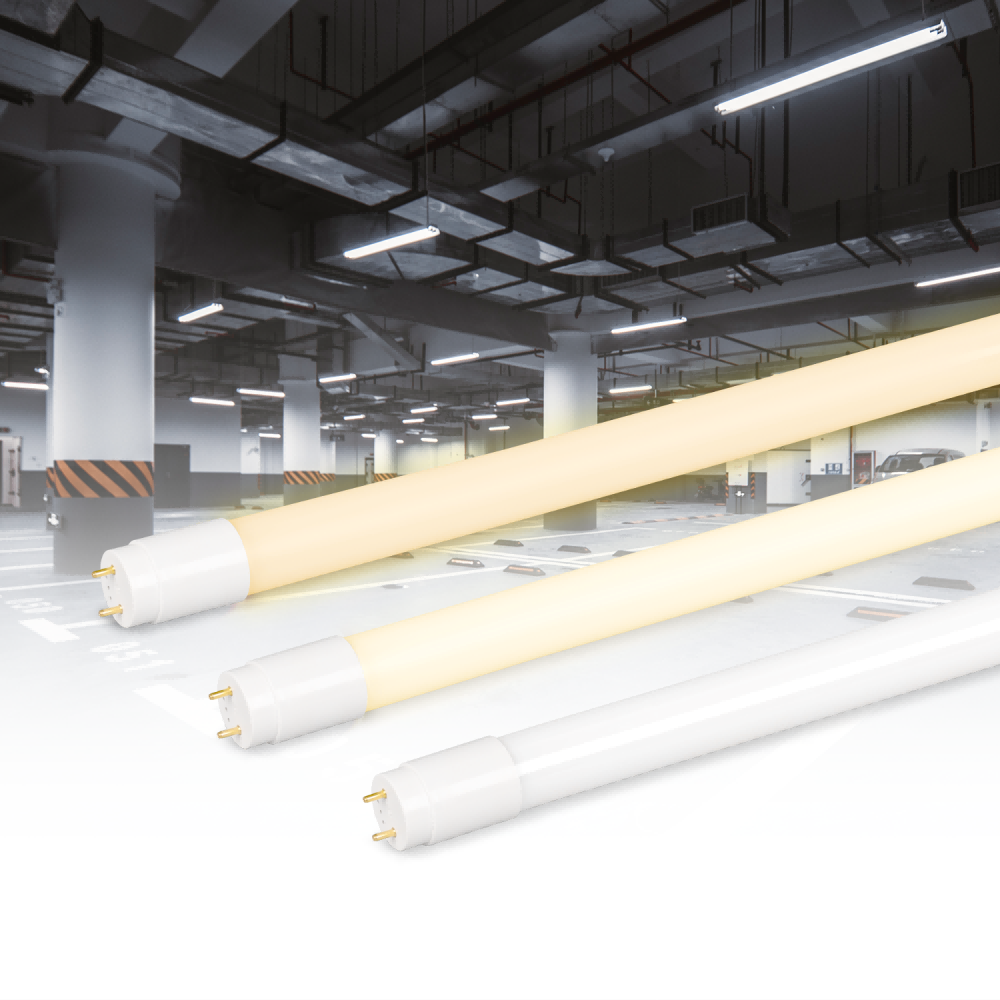

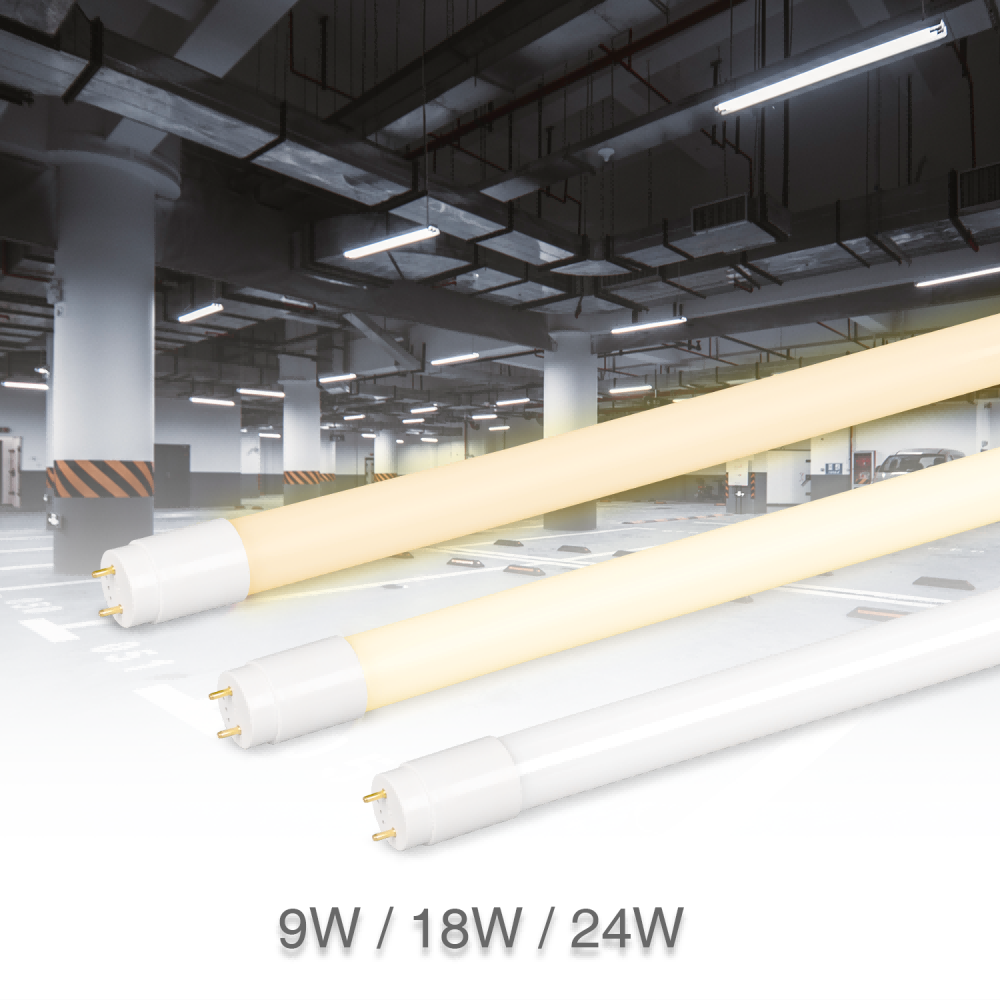

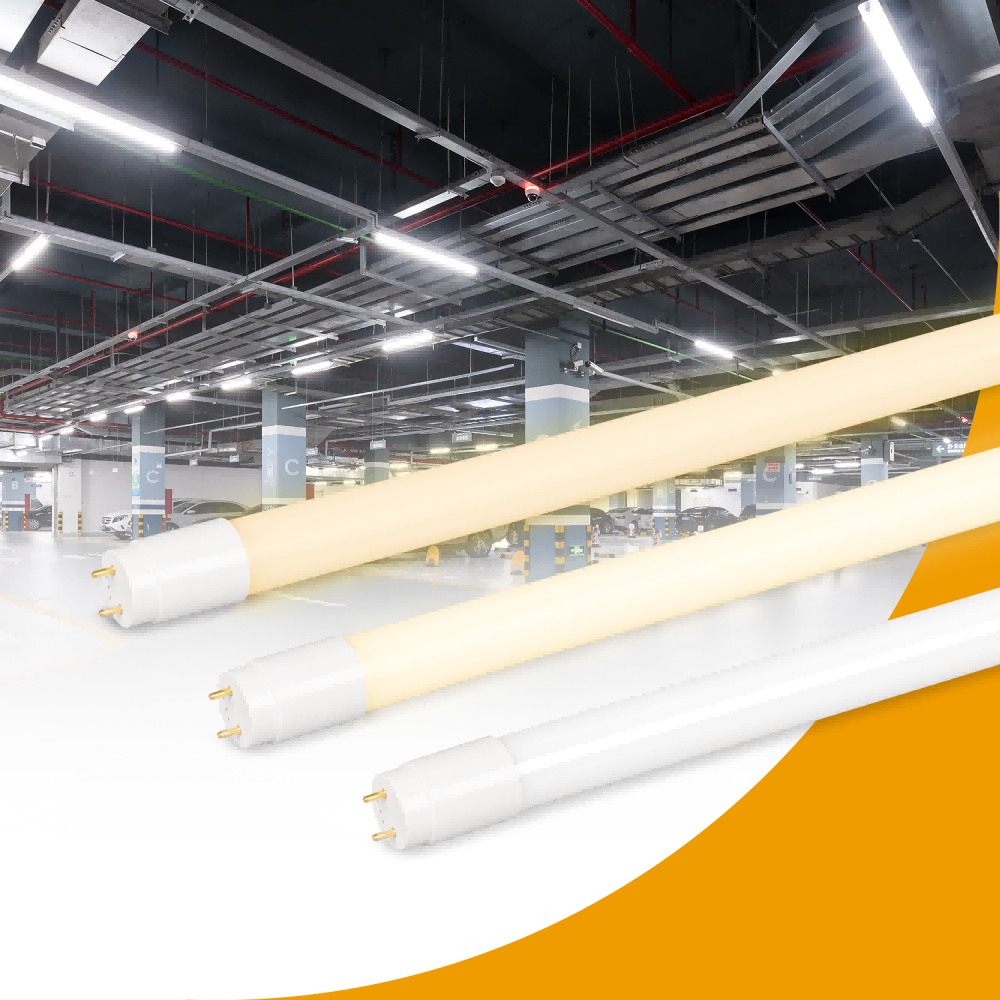

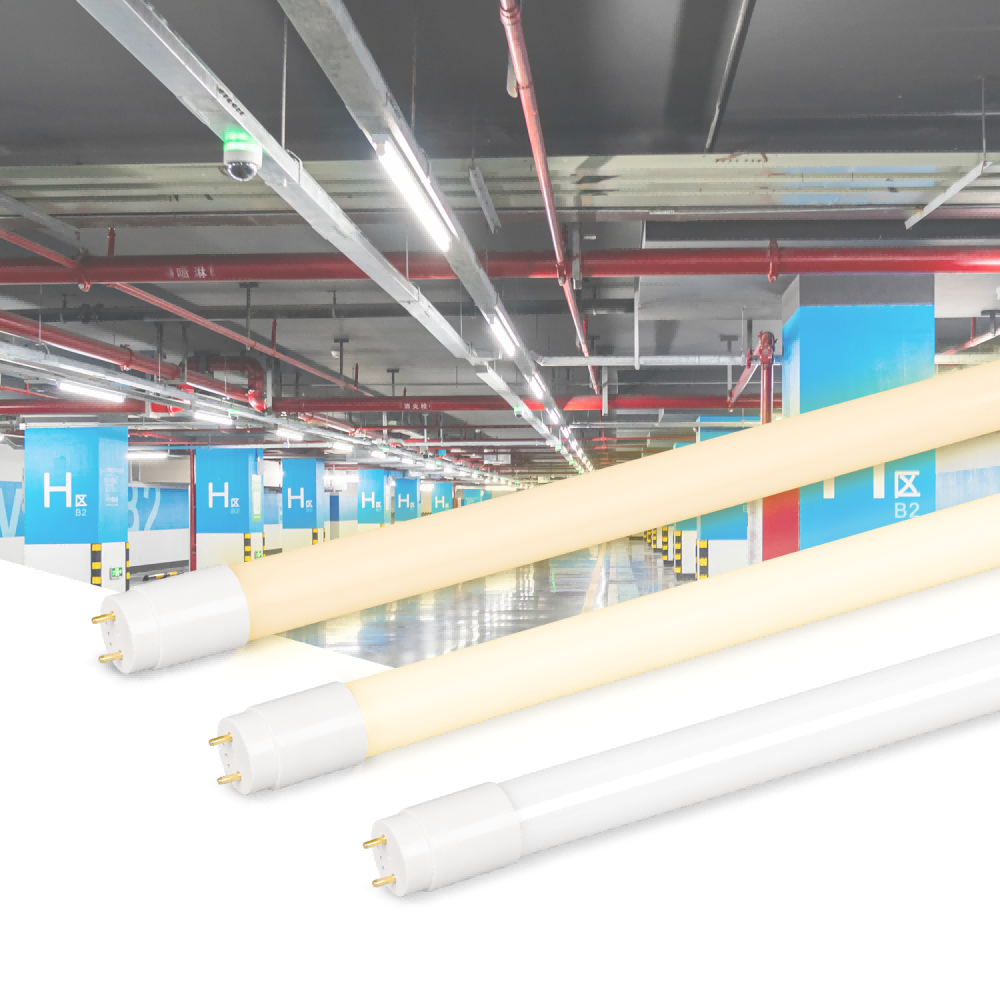

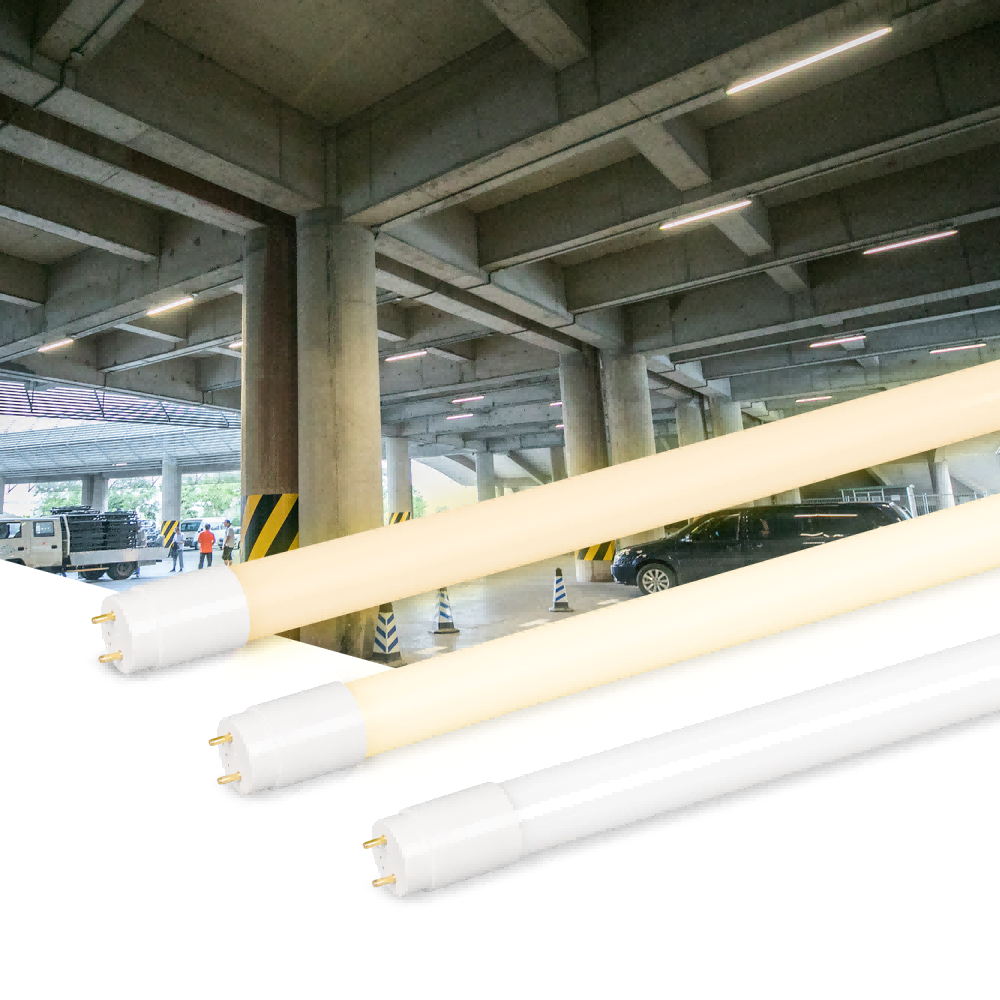

Corridors, stairways, parking garages,Warehouses
Cooling and storage rooms
Domestic applications

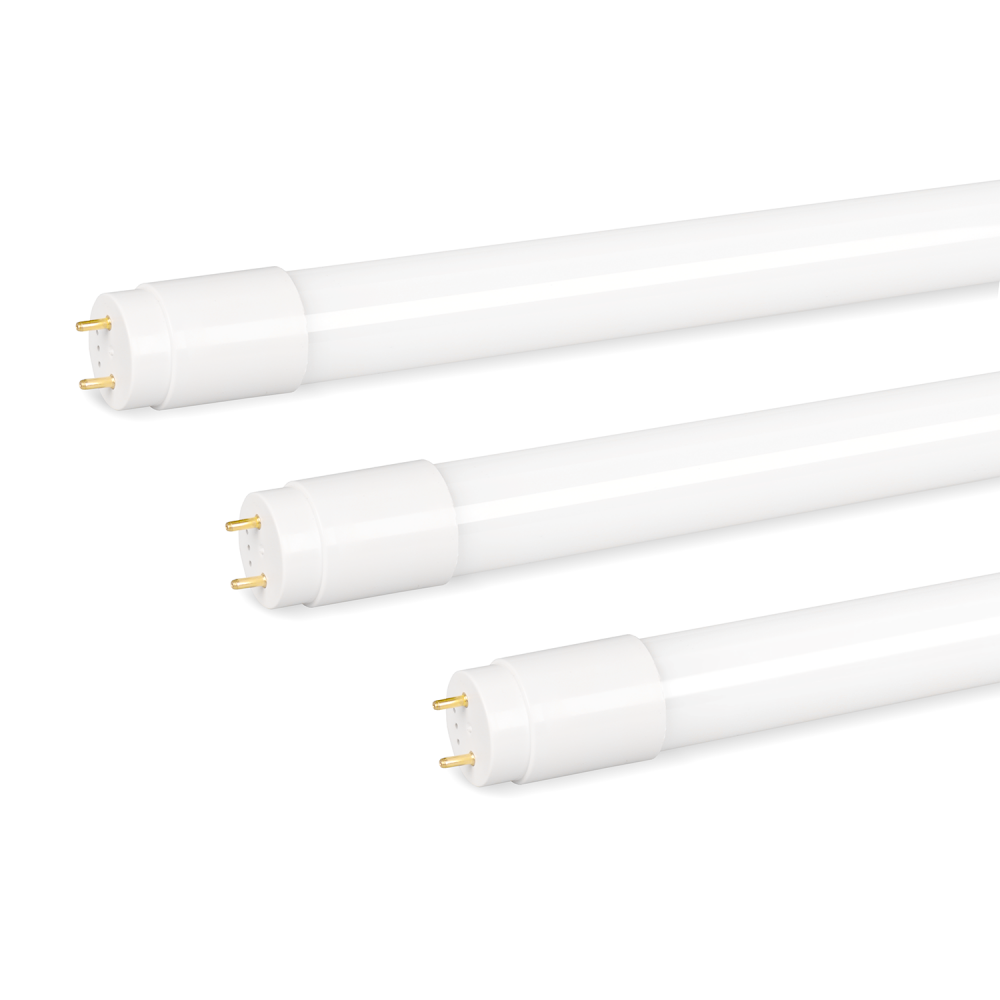

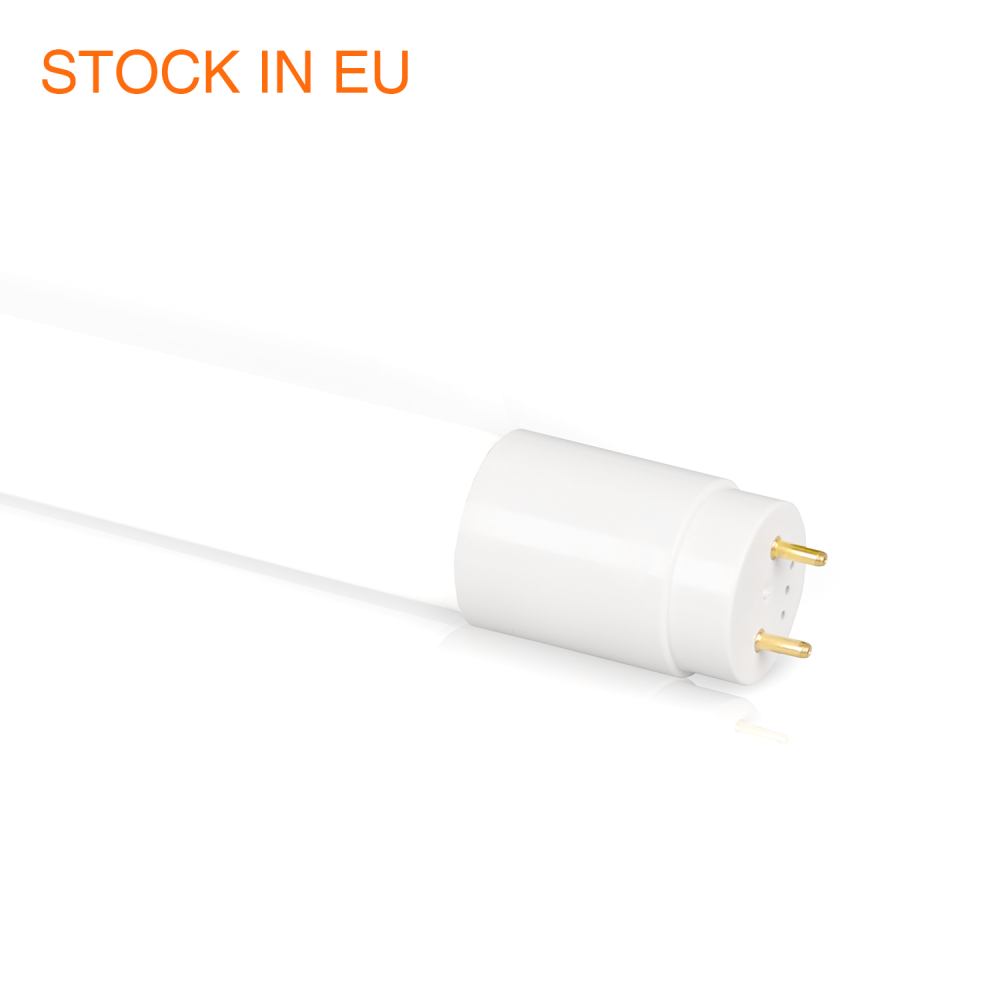

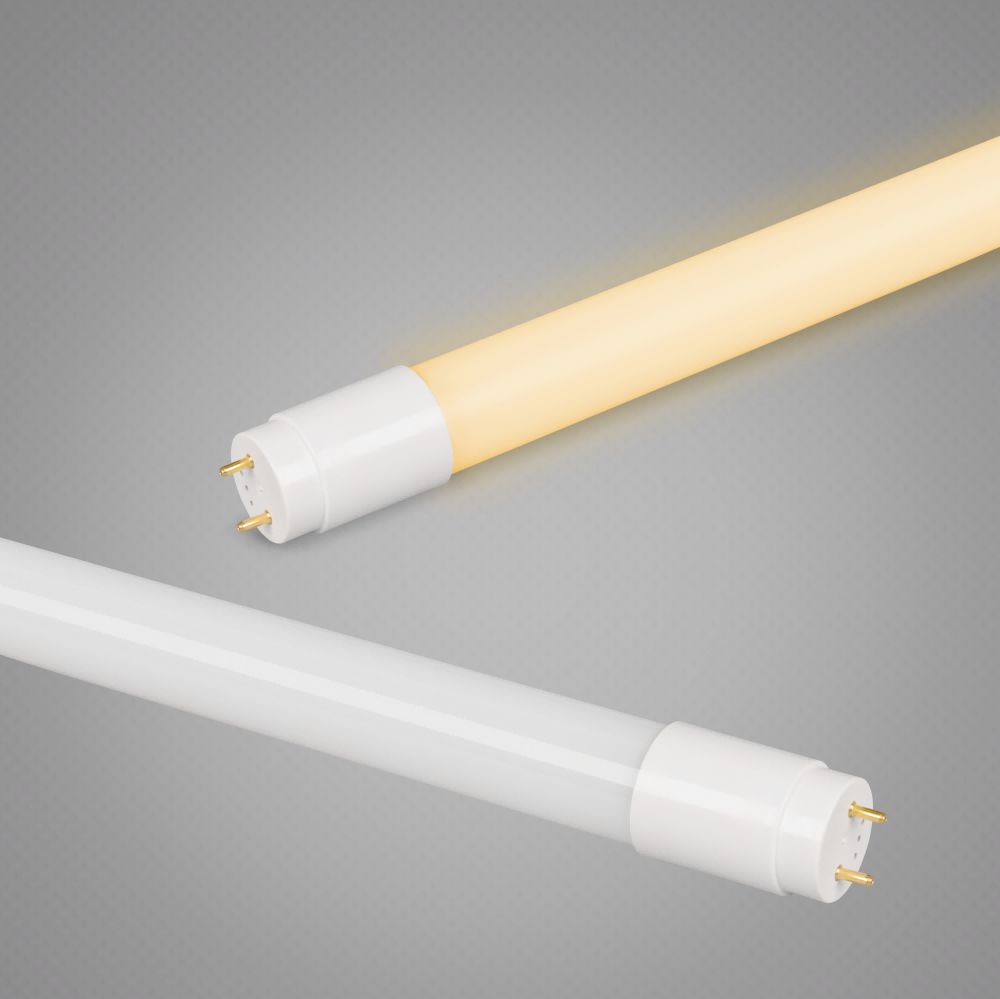

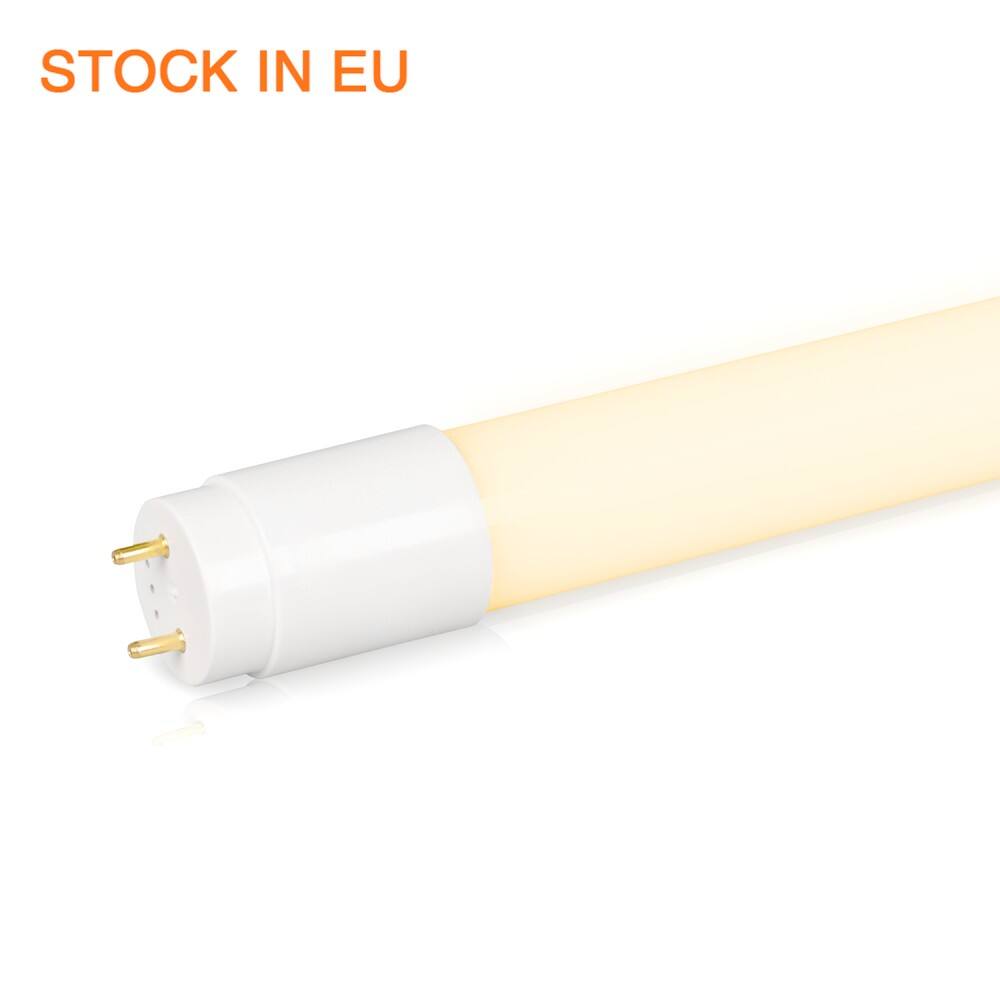

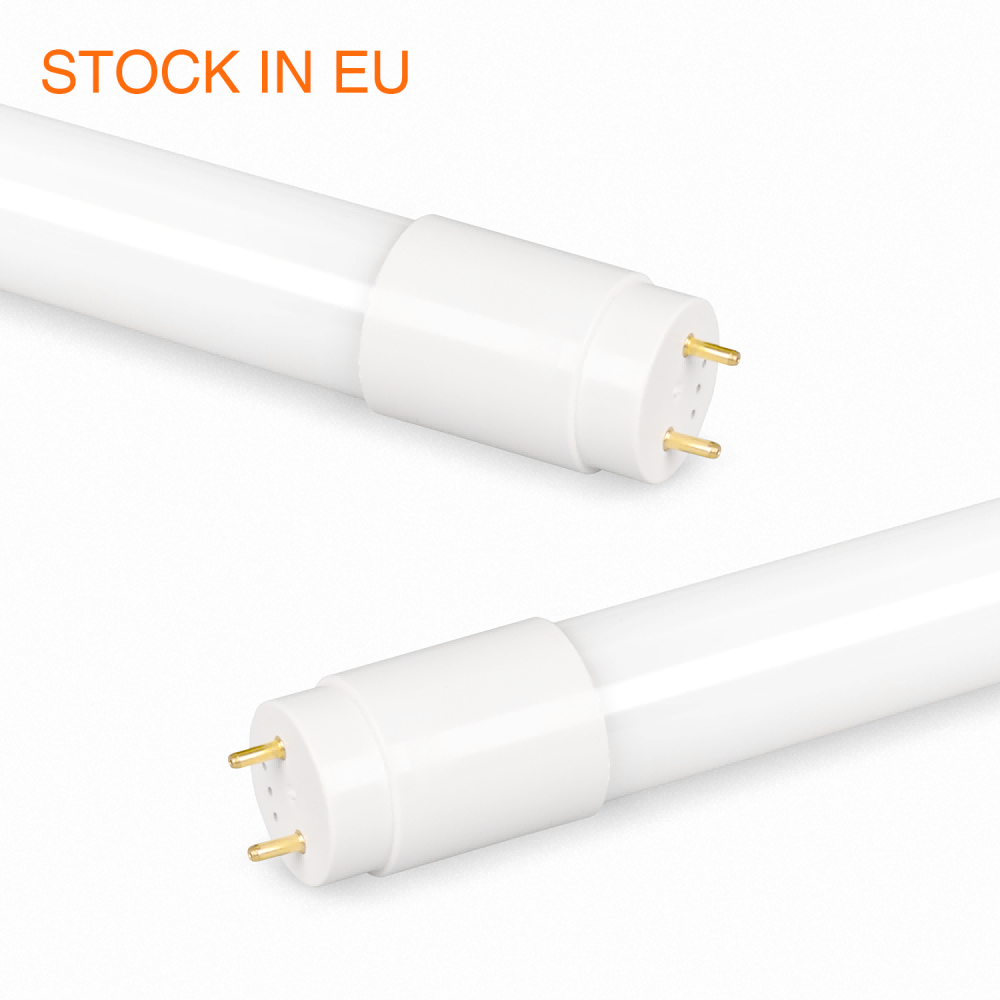

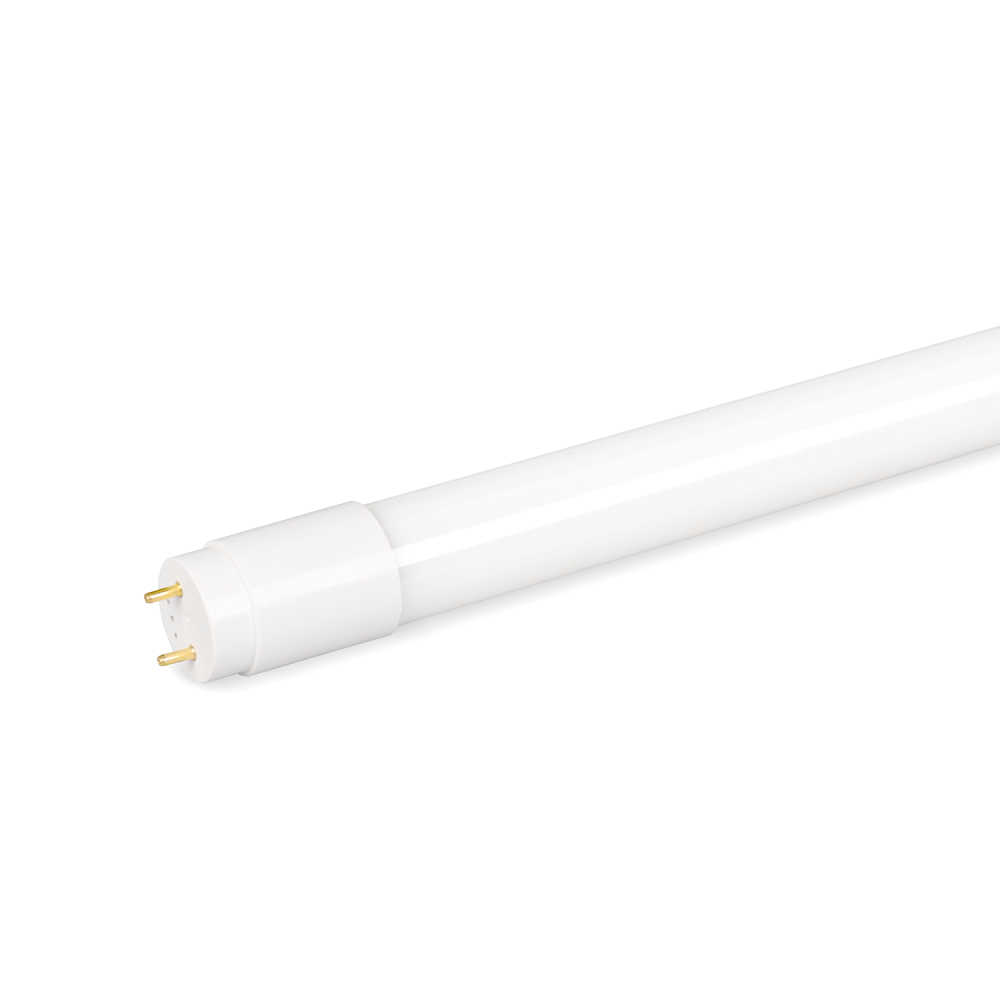

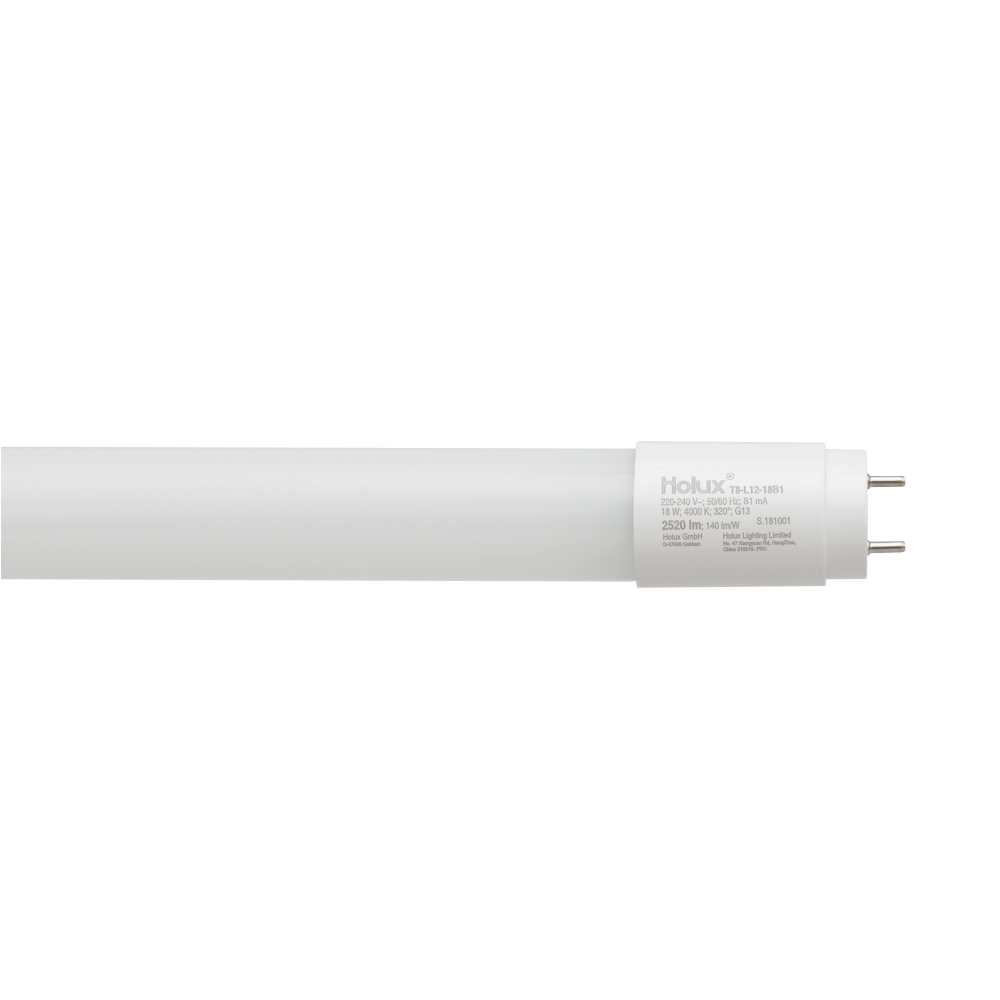

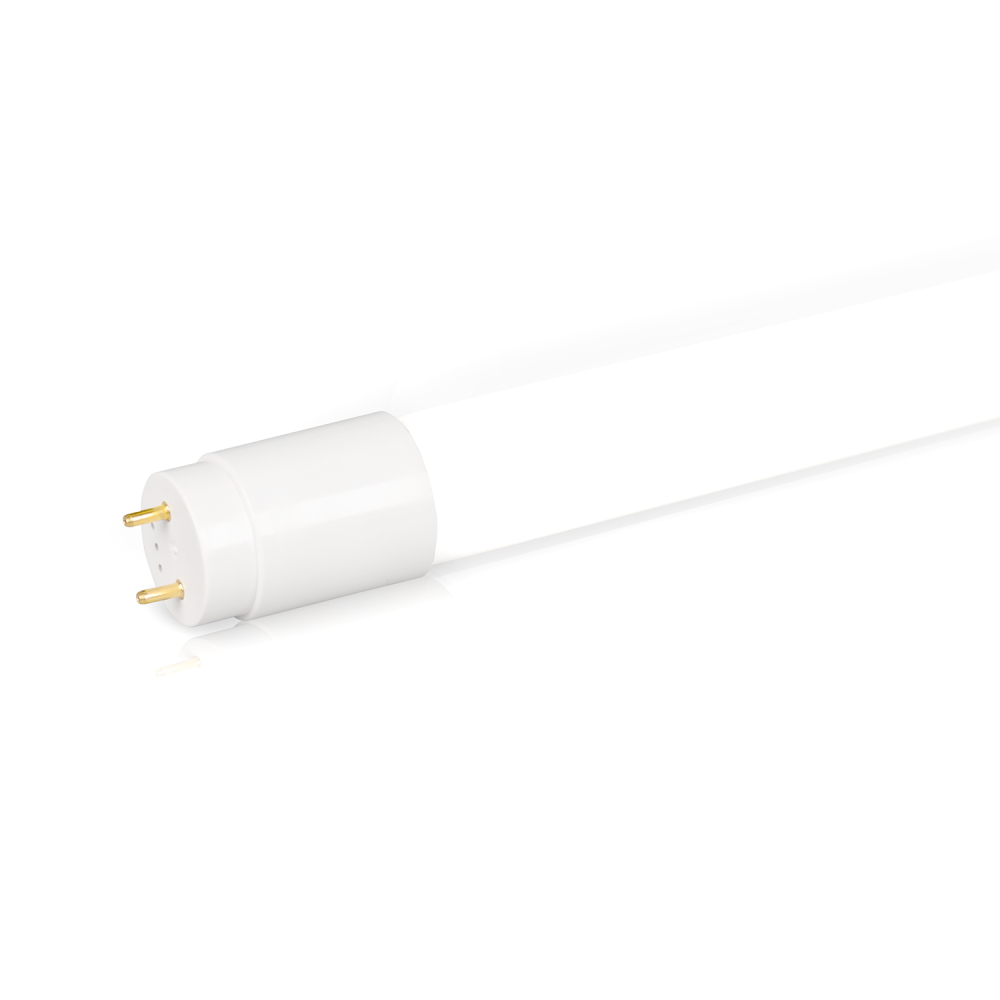

LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
Single and tandem operation on conventional control gear

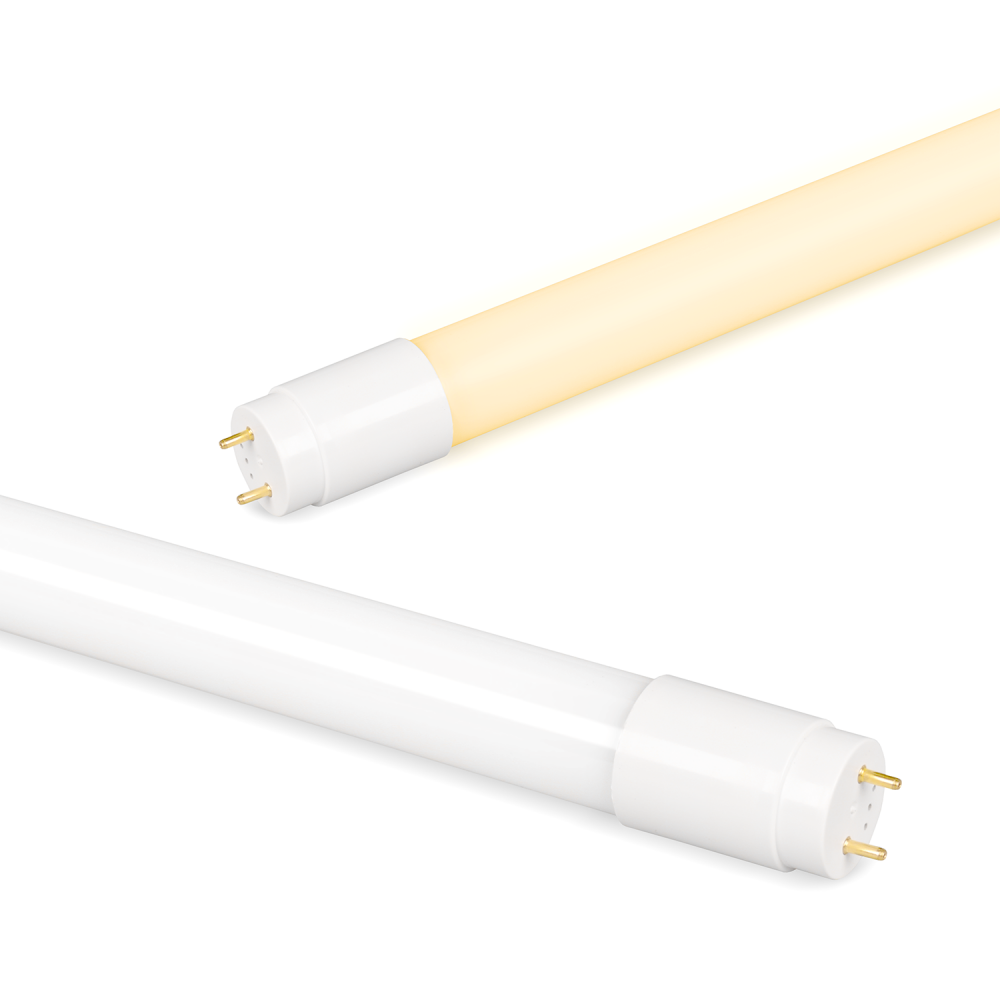

Tube made of glass
Long lifetime up to 50,000 h
Uniform illumination
Mercury-free and RoHS compliant
Type of protection: IP20
Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
Suitable for operation with low-loss and conventional control gears
When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Not suitable for operation with electronic control gear.
Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
Not suitable for emergency lighting.
Disconnect mains before installation.
| Nominal wattage | 16W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50 Hz |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 15 % |
| Protection class | II |
| Operating mode | internal driver |
| Luminous flux | 3360 lm |
| Luminous efficacy | 210 lm/W |
| Color temperature | 4000K/5700K |
| Light color (designation) | Natural/Cold white |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | <5 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Beam angle | 220 ° |
| 1512 mm | |
| Diameter | 26 mm |
| Height | 26 mm |
| Product color | White |
| Housing color | White |
| RAL Color (most similar) | RAL 9003 |
| Body material | Glass |
| Cover material | Glass |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+45 °C |
| Temperature range at storage | -20…+45 °C |
| Type of connection | / |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Dimming type | No |
| Internet of things ready | No |
| Mounting location | fixture |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
| Internet of things | No |
| Lifespan L70/B50 at 25℃ | 300000 h1) |
| Lifespan L80/B10 at 25℃ | 20000 h |
| Lifespan L90/B10 at 25℃ | 20000 h |
| Number of switching cycles | 30000 |
| Output current | |
| ECG - Output ripple current | |
| ECG - Length | |
| ECG - Width | |
| ECG - Height | |
| Recommended control gear |
| Type of Emergency Lighting (EL) | No |
| Emergency operation test type | No |
| Power in emergency operation mode | / |
| Luminous flux in emergency operation mode | / |
| Standards | CE, Rohs, ENEC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | No |
| Added function | / |
| Minimum rate of recycled material in packaging | 0% |
| Minimum percentage of recycled content in the product | 0% |
| Product recyclability | No |
| Packaging recyclability | No |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | / |
| Product image | Product name | EAN |
|
|
|
 |
|
|
CN21DHRK 002_AN-LVD |
CN21DHRK 002_S-GS |
ROHS |
 |
 |
 |
 |
| XXX | XXX | XXX | XXX |
 |
|||
| DSS_SHES201002130501 |
 |
|
||
| T8-L15-16A2-4000K | T8-L15-16A2-5700K |
