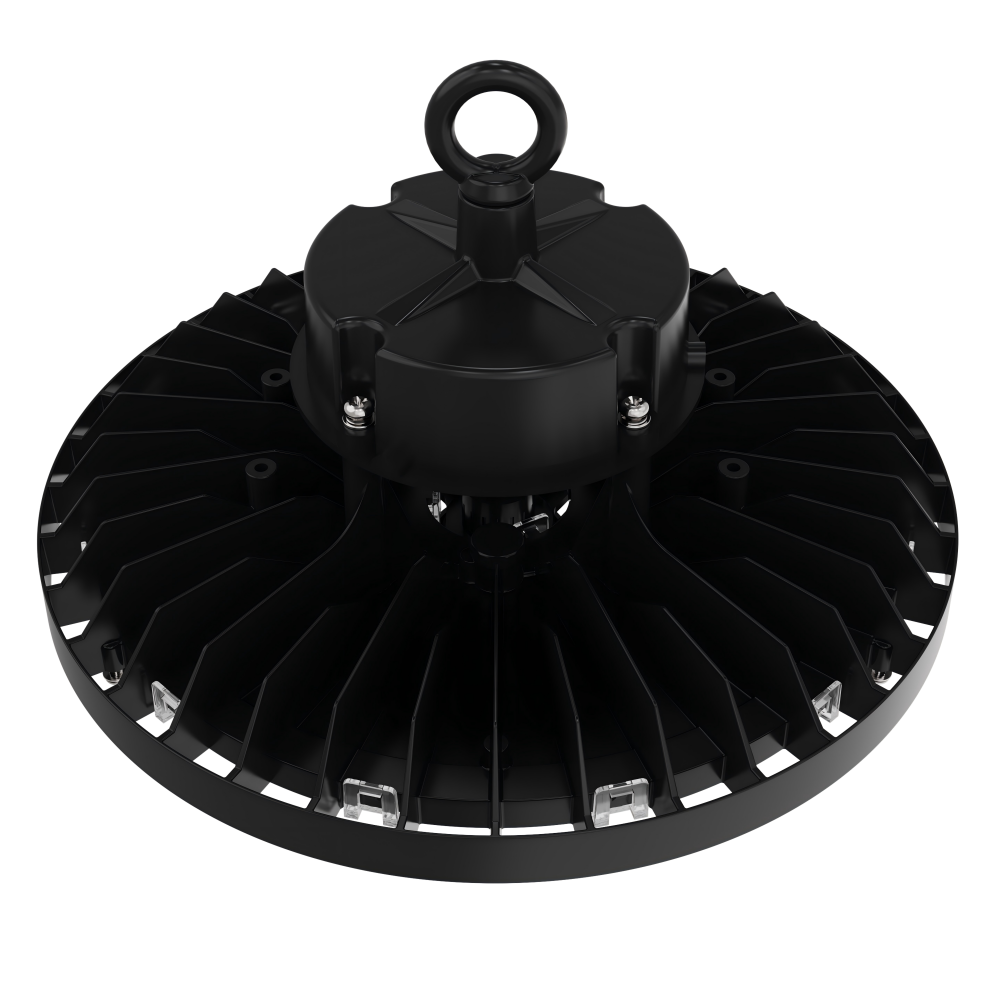

HB-246-100B2 840 246-H115mm 185LM/W 100W 18500LM UFO LED High Bay Light

Product benefits

1.Energy-efficient and Cost-saving : Complies with ERP Class A energy efficiency standard ; PF0.9 and optimized light distribution minimize energy waste.

2.Specially designed driver with 6KV surge protection,adapting to harsh industrial and outdoor semi-outdoor environments stably.

3.Professional high light Efficiency 185lm/w and high power 5050 LED applications.

4.Multiple Mounting Methods : Support ring mount, hook mount and bracket mount, suitable for different installation environments.

5.Flexible Smart Control Options : support motion sensor, emergency mode and DALI dimming; The high bay light is also compatible with Bluetooth, Zigbee and NLC WMS sensor, meeting diverse customized intelligent lighting control demands.

6.Excellent Anti-glare & Light Distribution : UGR<19 (for 100w and 150W) and bat wings light distribution design eliminate glare discomfort.

7.Premium Structural Design : Die-cast aluminum heatsink ensures efficient heat dissipation, avoiding light decay caused by overheating; replaceable injected PC lens for easy maintenance and component replacement.

Areas of application

1.Replacement for high bay luminaires with mercury vapor or metal halide lamps.

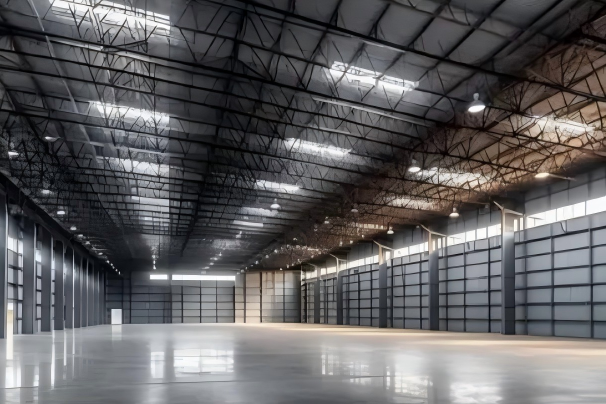

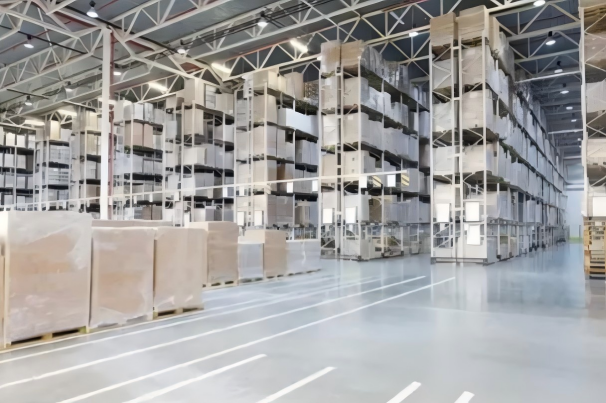

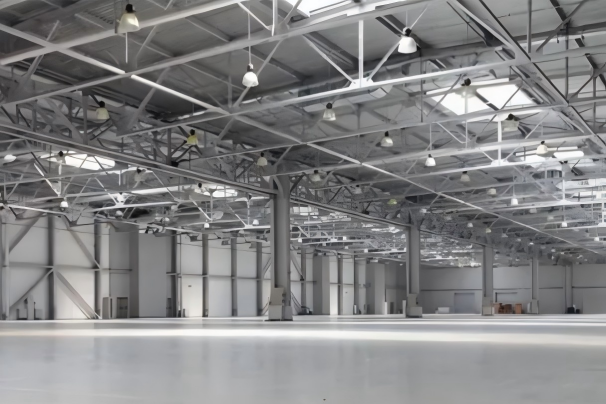

2.Widely used in workshops, warehouses, exhibition halls,gymnasiums,logistics centers, waiting rooms, stations, and high-bay workshops.

Product features

1.Luminous efficacy: 185 lm/W

2.Wattage options: 100W/150W/200W

3.Size options: Φ246*H155mm/Φ266*H160mm/Φ300*H169mm

4.Color temperature options: 3000K / 4000K / 5000K

5. CRI: ≥80

6.Housing material: Aluminum+PC

7.Protection rating: IP65,IK08

8.Input voltage: AC 220–240V,PF 0.9

9.Lifetime: 50,000 hours at 25℃

10.Additional function (zhage base version):Motion sensor, Emergency kit, 1-10V, DALI dimmable.

11.CE/RoHS/ENEC certificated.

Equipment / Accessories

Mounting hook included as standard accessory.

Mounting brackets, reflectors,Sensor kit and emergency kit available as separate accessory.

References / Links

Parameters

Electrical data

Nominal wattage	100 W
Nominal voltage	220…240 V
Mains frequency	50 Hz
Operating mode	internal driver

Photometrical data

Luminous flux	18500 lm
Luminous efficacy	185 lm/W
Color temperature	3000 K/4000 K/5000 K
Light color (designation)	Warm White/Natural white/Cold White
Color rendering index Ra	> 80
Standard deviation of color matching	< 5 sdcm
Beam angle	90 °
UGR	19

Dimensions & Weight

Diameter	246 mm
Height	115 mm

Materials & Colors

Product color	black
Housing color	black
Body material	Aluminum+PC
Cover material	Aluminum+PC

Application & Mounting

Ambient temperature range	-20…+45 °C
Temperature range at storage	-20…+45 °C
Type of protection	IP65
Protection class IK (shock resistance)	IK08
Dimmable	No
Dimming type	No
Internet of things ready	No
Application environment	Indoor/Outdoor
With light source	Yes
Replaceable light source	No
Internet of things	No

Lifespan

Lifespan L70/B50 at 25℃	100000 h1)
Lifespan L80/B10 at 25℃	50000 h1)
Lifespan L90/B10 at 25℃	30000 h
Number of switching cycles	30000

Control gear

Output current
ECG - Output ripple current
ECG - Length
ECG - Width
ECG - Height
Recommended control gear

Emergency lighting

Type of Emergency Lighting (EL)	No
Emergency operation test type	No
Power in emergency operation mode	/
Luminous flux in emergency operation mode	/

Certificates & Standards

Standards	CE, Rohs, ENEC
Luminaire with limited surface temperature, "D sign"
Ball shot safe
EPD
Replaceable light source (EPREL)

Additional product data

Added function

/

Product sheet relating to environmental qualities and characteristics

Minimum rate of recycled material in packaging	80 %1)
Minimum percentage of recycled content in the product	0 %1)
Product recyclability	Mostly recyclable product1)
Packaging recyclability	Mostly recyclable packaging1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	/

Packaging Information

Optional

Product image	Product name	EAN
	Aluminum reflector for 100W high bay light Aluminum reflector for 150W high bay light Aluminum reflector for 200W high bay light	HB-AL-S HB-AL-M HB-AL-L
	Steel made adjustable bracket installation kit	BT-BRT-S

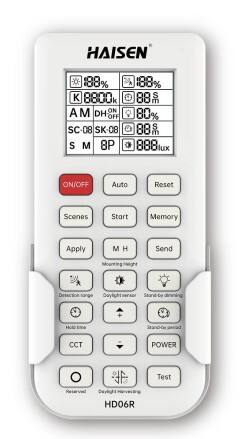

	remote control for sensor model	HD06R
	PC reflector for 100W high bay light PC reflector for 150W high bay light PC reflector for 200W high bay light	HB-PC-S HB-PC-M HB-PC-L
	Microwave sensor，assemed in Zhaga base directly	HD06VCRH 7B
	Infrared sensor,assemed in Zhaga base directly	HD06VCRH 7C
