Stock Quantity: 245
Size(mm): 1473x70x69mm
Power: 50W
Luminous Flux: 6500 LM
Light Efficiency: 130 LM/W
CCT: 4000K
IP:65
IK: 08
Linkable: No
| Nominal wattage | 50W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50 Hz |
| Power factor λ | > 0.90 |
| Protection class | II |
| Operating mode | internal driver |
| Luminous flux | 6500lm |
| Luminous efficacy | 130 lm/W |
| Color temperature | 4000K |
| Light color (designation) | Natural white |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | <5 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | < 1 |
| Flash effect index (SVM) | < 0.4 |
| Beam angle | 95° |
| 1473 mm | |
| Diameter | 70 mm |
| Height | 69 mm |
| Product weight | 1300 g |
| Product color | White |
| Housing color | White |
| RAL Color (most similar) | RAL 9003 |
| Body material | PC |
| Cover material | PC |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+45 °C |
| Temperature range at storage | -20…+45 °C |

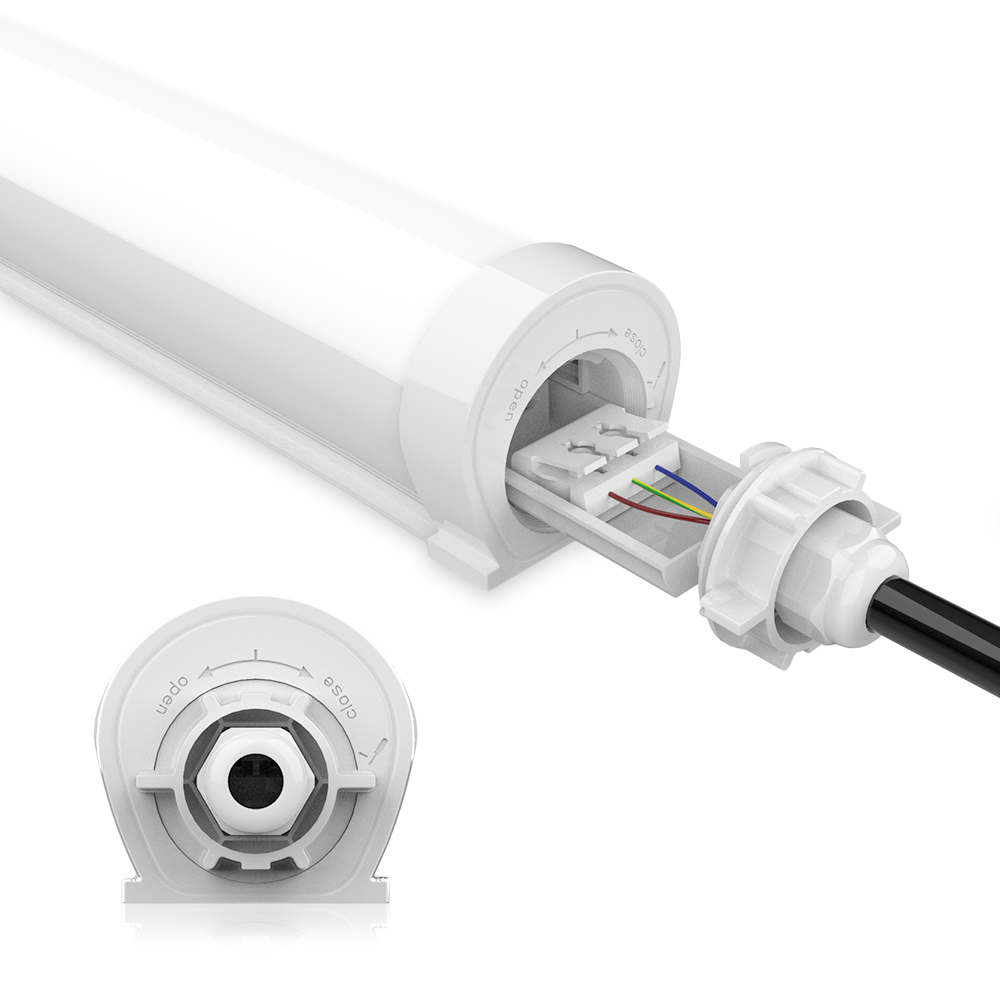

| Type of connection | Screwless terminal, 3-Pole (L, N, PE) |
| Type of protection | IP65 |
| Protection class IK (impact resistance) | IK08 |
| Dimmable | No |
| Dimming type | No |
| Internet of things ready | No |
| Mounting location | Embedded |
| Application environment | Indoor outdoor |
| With light source | Yes |
| Replaceable light source | No |
| Internet of things | No |
| Lifespan L70/B50 at 25℃ | 100000 h1) |
| Lifespan L80/B10 at 25℃ | 50000 h1) |
| Lifespan L90/B10 at 25℃ | 30000 h |
| Number of switching cycles | 30000 |
| Output current | 400 mA |
| ECG - Output ripple current | < 10% |
| ECG - Length | 178 mm |
| ECG - Width | 45 mm |
| ECG - Height | 25 mm |
| Type of Emergency Lighting (EL) | No |
| Emergency operation test type | No |
| Power in emergency operation mode | / |
| Luminous flux in emergency operation mode | / |
| Standards | CE, Rohs, ENEC |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Yes |
| Added function | / |
| Minimum rate of recycled material in packaging | 80 %1) |
| Minimum percentage of recycled content in the product | 0 %1) |
| Product recyclability | Main recyclable products1) |
| Packaging recyclability | Mostly recyclable product1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | / |
| Product image | Product name | EAN |
| 405 | ||
| 405 | ||
| 405 | ||
| 405 | ||
| 405 |
 |
 |
||
| 201100038SHA-CE | 201100040SHA-EMC |
 |
|||
| Line Graph | XXX | XXX | XXX |
 |
|||
| TP-12-35W.IES |
