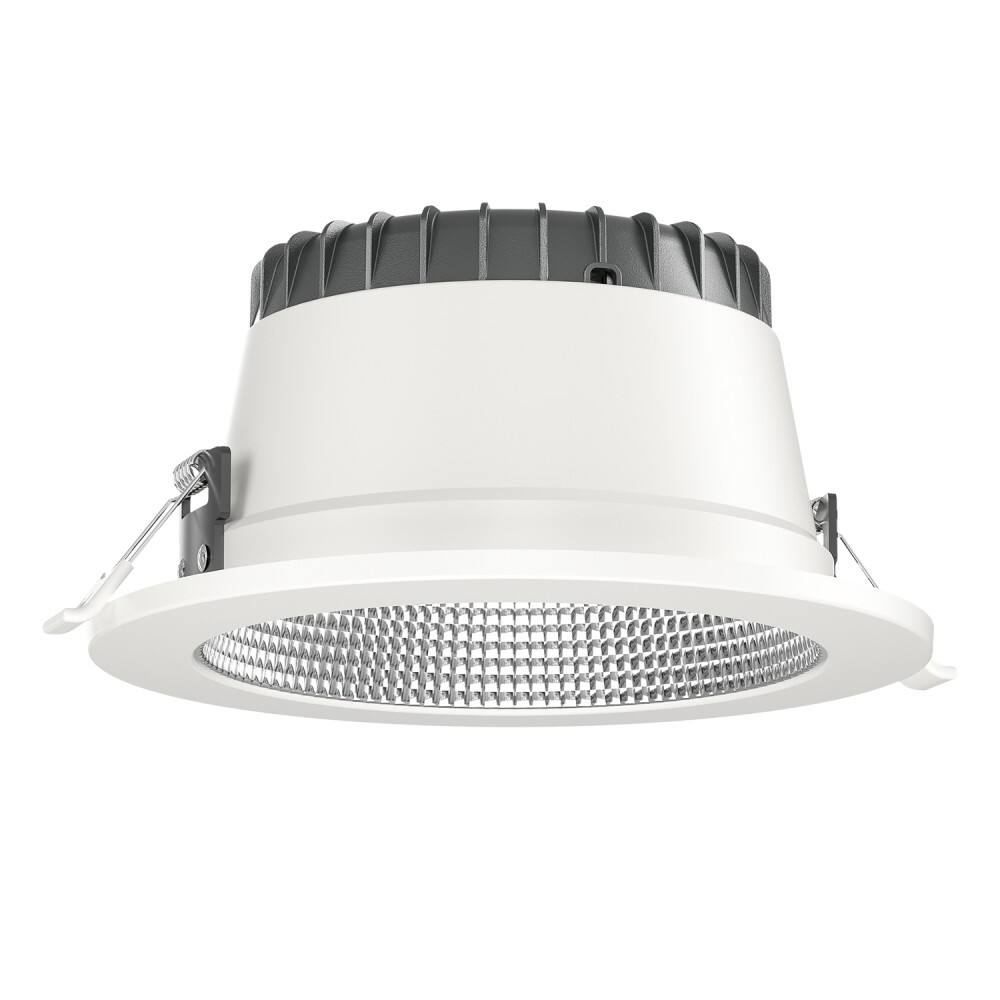

DLU2-4-10CCT 3CCT IP64 10W 1000LM LED Downlight

Product benefits

Presettable tri-white CCT, allowing on-site selection for different lighting atmospheres
Two optical options available: Reflector+Lens for UGR <19 professional lighting, or Reflector+Diffuser for UGR <24 general lighting

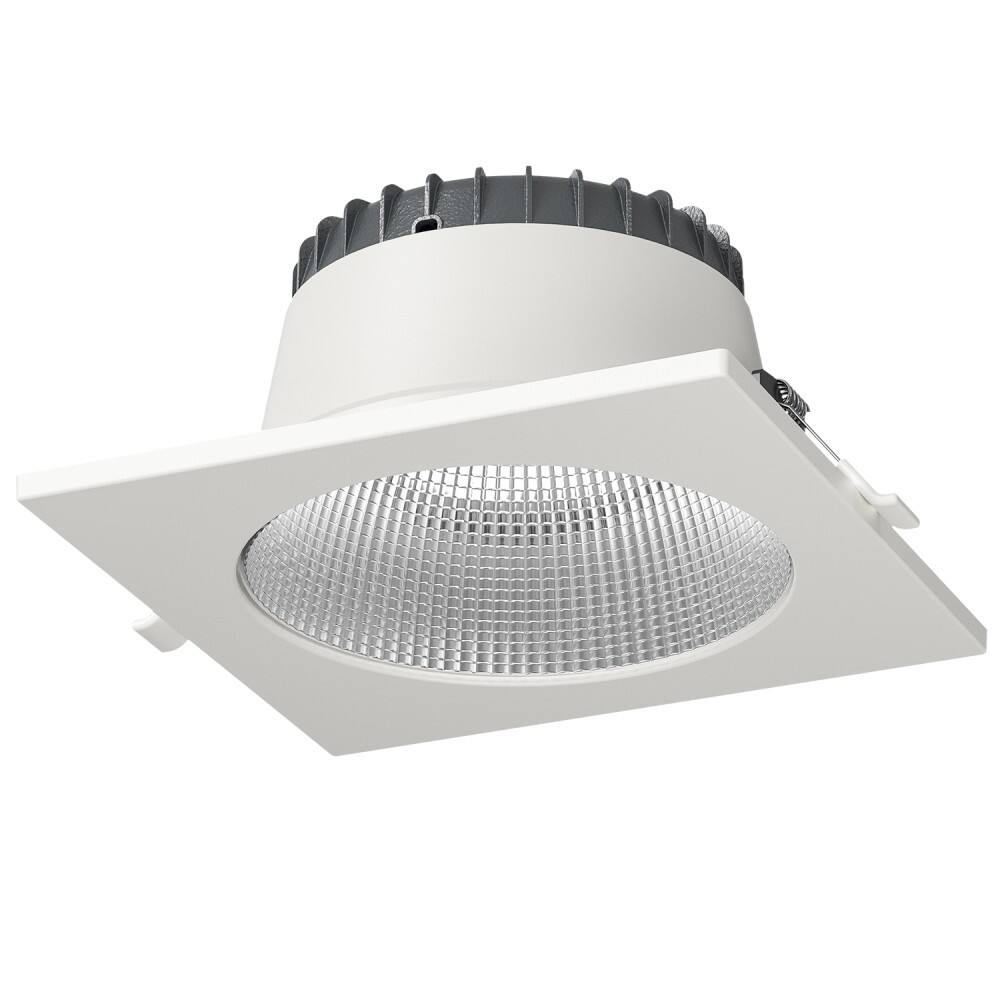

Interchangeable ring frames: round, square, or glass options to match different interior styles
Aluminum housing with surface mounted housing option for flexible installation
High efficacy up to 120 lm/W for energy savings
Multiple beam angle options: 60° or 80° to suit different applications
All-in-one design for quick and easy installation
5 years guarantee

Luminous flux	1000 lm
Luminous efficacy	100 lm/w
Color temperature	3000K / 4000K / 5700K
Light color (designation)	Warm / Natural / Cold white
Color rendering index Ra	> 80
Standard deviation of color matching	< 3 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	< 1
Stroboscope effect metric (SVM)	< 0.4
Beam angle	60°

Product color	white
Housing color	white
RAL Color (most similar)	RAL 9003
Body material	PC
Cover material	PC
Glow Wire Test according to IEC 60695-2-12	650℃
Mercury content	0.0 mg

Ambient temperature range	-20…+45 °C
Temperature range at storage	-20…+45 °C
Type of connection	Screwless terminal, 3-Pole (L, N, PE)
Type of protection	IP64
Protection class IK (shock resistance)	IK06
Dimmable	No
Dimming type	No
Internet of things ready	No
Mounting location	Embedded
Application environment	Indoor outdoor
With light source	Yes
Replaceable light source	No
Internet of things	No

Type of Emergency Lighting (EL)	No
Emergency operation test type	No
Power in emergency operation mode	/
Luminous flux in emergency operation mode	/

Standards	CE, CB, ERP, RoHS
Luminaire with limited surface temperature, "D sign"	Yes
Ball shot safe	No
Replaceable light source (EPREL)	Yes

Added function

/

Minimum rate of recycled material in packaging	80 %1)
Minimum percentage of recycled content in the product	0 %1)
Product recyclability	Main recyclable products1)
Packaging recyclability	Mostly recyclable product1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	/

Product image	Product name	EAN
	White square frame for 6 inch downlight	DLU1-F-SW-6
	White square frame for 8 inch downlight	DLU1-F-SW-8
	Black round frame for 6 inch downlight	DLU1-F-RB-6
	Black round frame for 8 inch downlight	DLU1-F-RB-8
	White surface housing for 6 inch downlight	DLU1-H-W-6
	White surface housing for 8 inch downlight	DLU1-H-W-8
	Black square frame for 6 inch downlight	DLU1-F-SB-6
	Black square frame for 8 inch downlight	DLU1-F-SB-8
	Glass frame for 6 inch downlight	DLU1-F-G-6
	Glass frame for 8 inch downlight	DLU1-F-G-8
	Black surface housing for 6 inch downlight	DLU1-H-B-6
	Black surface housing for 8 inch downlight	DLU1-H-B-8
