1500mm tri-proof

The 1500mm tri-proof light is a high-performance LED luminaire engineered to deliver reliable illumination in some of the most demanding environments on the planet. Measuring 1500mm in length, this fixture is purpose-built to withstand three critical environmental threats: water, dust, and impact. These three protections give the product its defining name, and together they form the foundation of a lighting solution that outperforms conventional fluorescent and standard LED alternatives in virtually every industrial and commercial setting. At its core, the 1500mm tri-proof uses advanced LED chip technology to produce a bright, consistent light output that typically ranges from 4000 to 6000 lumens, depending on the wattage configuration selected. The optical design channels this output efficiently across wide areas, reducing dark spots and ensuring uniform coverage across floors, walls, and workspaces. The housing is constructed from high-grade polycarbonate or aluminum alloy, materials chosen specifically for their resistance to corrosion, chemical exposure, and physical stress. The ingress protection rating on most 1500mm tri-proof models reaches IP65 or higher, confirming that the fixture is fully sealed against dust ingress and protected against low-pressure water jets from any direction. This makes it suitable for wet processing areas, cold storage facilities, food manufacturing plants, and outdoor covered walkways. The IK rating, which measures resistance to mechanical impact, typically reaches IK08 or IK10, meaning the fixture can absorb significant physical force without cracking or failing. From a technological standpoint, the 1500mm tri-proof integrates driver circuitry that supports a wide input voltage range, usually between 100V and 277V AC, making it compatible with electrical systems across different regions and countries. Many models include built-in surge protection, flicker-free operation, and a power factor above 0.9, all of which contribute to stable, energy-efficient performance. Optional features such as emergency backup modules, microwave motion sensors, and dimming controls allow facility managers to customize the fixture to their specific operational needs. Applications for the 1500mm tri-proof span a wide range of industries. It is commonly installed in warehouses, logistics centers, parking garages, tunnels, sports halls, supermarkets, and manufacturing facilities. Its combination of durability, efficiency, and low maintenance requirements makes it a preferred choice for any environment where lighting must perform consistently under pressure.

New Product Releases

Choosing the right lighting for a tough environment is not just about brightness. It is about finding a fixture that keeps working day after day without demanding constant attention or driving up your energy bills. The 1500mm tri-proof delivers on all of these fronts, and it does so in ways that make a real difference to the people who rely on it. First, the energy savings are immediate and measurable. A standard 1500mm tri-proof running at 40 to 50 watts produces the same amount of usable light as a traditional 58-watt fluorescent tube fitting, and it does so while consuming significantly less power. Over the course of a year, a facility running dozens or hundreds of these fixtures will see a substantial reduction in electricity costs. For large warehouses or manufacturing plants operating around the clock, those savings can run into thousands of dollars annually. Second, the maintenance burden drops dramatically. Fluorescent tubes burn out, starters fail, and ballasts degrade. Every replacement means labor costs, downtime, and the ongoing expense of consumable parts. The 1500mm tri-proof has a rated lifespan of 50,000 hours or more, which translates to well over a decade of continuous use under normal operating conditions. Facilities that switch to this fixture often find that their lighting maintenance schedule becomes almost nonexistent. Third, the build quality means you stop worrying about the environment affecting your lights. Moisture, dust, cleaning chemicals, and accidental impacts are everyday realities in industrial and commercial spaces. The sealed polycarbonate housing of the 1500mm tri-proof keeps all of these threats out. You can hose down the fixture during a facility clean, run it in a cold storage room where condensation is constant, or install it in a dusty production line without any concern about premature failure. Fourth, installation is straightforward. The fixture is designed with practical mounting options that work with surface ceilings, suspended cable systems, and wall brackets. The wide input voltage range means your electrical team does not need to make special accommodations for the fixture, and the lightweight construction reduces the physical effort involved in getting units into position at height. Fifth, the quality of light itself improves the working environment. The 1500mm tri-proof delivers a high color rendering index, typically Ra80 or above, which means colors appear accurate and workers can see detail clearly. Flicker-free operation reduces eye strain during long shifts, and the even light distribution eliminates the harsh shadows that older fluorescent systems often create. Sixth, optional smart features give you control over how and when the light operates. Motion sensors can cut power when an area is unoccupied, pushing energy savings even further. Dimming capability lets you adjust output to match the task at hand. Emergency backup modules ensure that critical areas stay lit during a power outage. These options transform the 1500mm tri-proof from a simple light fitting into an active component of a well-managed facility. Taken together, these advantages make the 1500mm tri-proof one of the most practical and cost-effective lighting investments available for industrial and commercial applications today.

Practical Tips

What Are the Key Advantages of LED Panel Light in Modern Office Lighting?

31

Mar

What Are the Key Advantages of LED Panel Light in Modern Office Lighting?

Modern office environments demand lighting solutions that balance energy efficiency, visual comfort, and professional aesthetics. Among the various lighting technologies available today, LED panel light systems have emerged as the preferred choice fo...
View More
How Do Modern Buildings Optimize Performance with Commercial Lighting?

21

Apr

How Do Modern Buildings Optimize Performance with Commercial Lighting?

Modern buildings are increasingly sophisticated in their approach to performance optimization, with commercial lighting serving as a critical component in achieving energy efficiency, occupant comfort, and operational cost reduction. The strategic im...
View More
How Does LED Bulb Brightness Compare with Conventional Bulbs?

13

May

How Does LED Bulb Brightness Compare with Conventional Bulbs?

Understanding LED bulb brightness in relation to conventional lighting technologies remains a critical consideration for facility managers, procurement specialists, and industrial operations planning lighting upgrades or retrofits. The transition fro...
View More
Why Is LED Batten Ideal for Simple and Efficient Lighting Solutions?

27

May

Why Is LED Batten Ideal for Simple and Efficient Lighting Solutions?

Modern commercial and industrial environments demand lighting solutions that combine simplicity with performance, and LED batten fixtures have emerged as a leading choice for spaces requiring straightforward yet effective illumination. These linear l...
View More

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

1500mm tri-proof

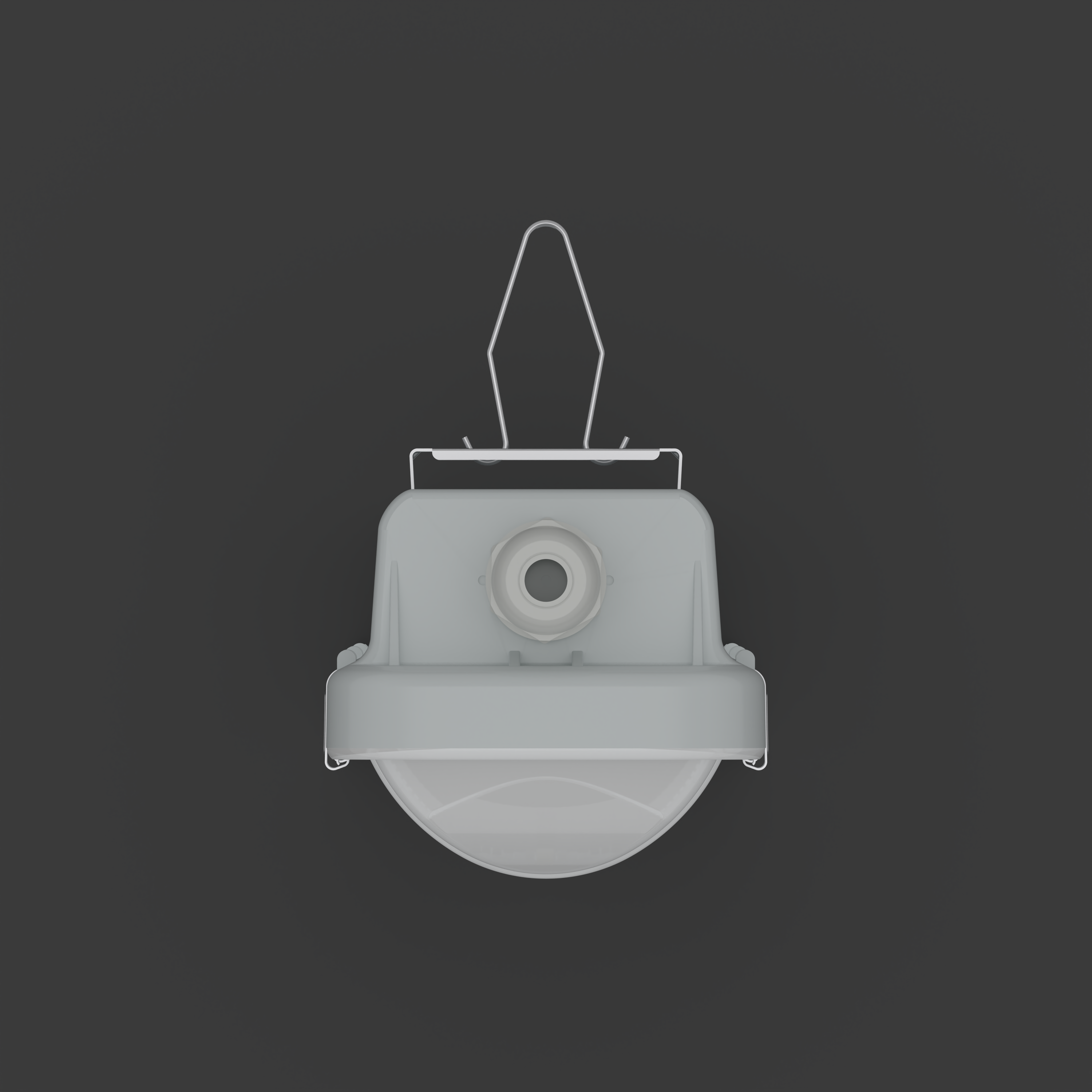

Uncompromising Durability Built for the Harshest Conditions

Uncompromising Durability Built for the Harshest Conditions

When a lighting fixture carries the tri-proof designation, it is making a specific promise: it will not fail because of water, dust, or impact. The 1500mm tri-proof keeps that promise through a combination of precision engineering and carefully selected materials that work together to create a sealed, resilient unit capable of operating reliably in environments that would destroy ordinary light fittings within months. The outer housing of the 1500mm tri-proof is typically formed from high-impact polycarbonate, a material that combines optical clarity with exceptional toughness. Unlike glass or acrylic, polycarbonate flexes under impact rather than shattering, which means a dropped tool or a forklift brush-past is unlikely to crack the diffuser or compromise the seal. In applications where even greater mechanical protection is required, aluminum alloy housings are available, offering additional rigidity and heat dissipation alongside the same sealed construction. The IP65 rating that most 1500mm tri-proof models carry is not a marketing claim. It is a verified result from standardized testing that confirms the fixture is completely dust-tight and can withstand sustained water jets from any direction without allowing moisture to enter the internal components. In practice, this means the fixture can be installed in car wash facilities, food processing lines, fish markets, breweries, and outdoor covered areas where rain and cleaning water are constant factors. The IK08 or IK10 impact rating adds another layer of assurance. IK10 certification means the fixture has been tested to withstand an impact equivalent to a 5-kilogram mass dropped from 400 millimeters, a level of force that represents the kind of accidental contact that happens regularly in busy industrial spaces. Gasket sealing around the diffuser and end caps prevents any degradation of the IP rating over time, even as the fixture is subjected to repeated thermal cycling between hot and cold conditions. Corrosion resistance is built into every component. Stainless steel or nylon fasteners replace standard steel screws, eliminating the rust pathways that cause older fixtures to seize up and become difficult to service. The internal driver and LED components are protected not just by the housing but also by conformal coating on the circuit boards, which provides a secondary barrier against humidity and chemical vapors. For facility managers responsible for environments where lighting failure means safety risks or production downtime, the durability of the 1500mm tri-proof is not a luxury feature. It is the core reason the fixture earns its place on the specification sheet.

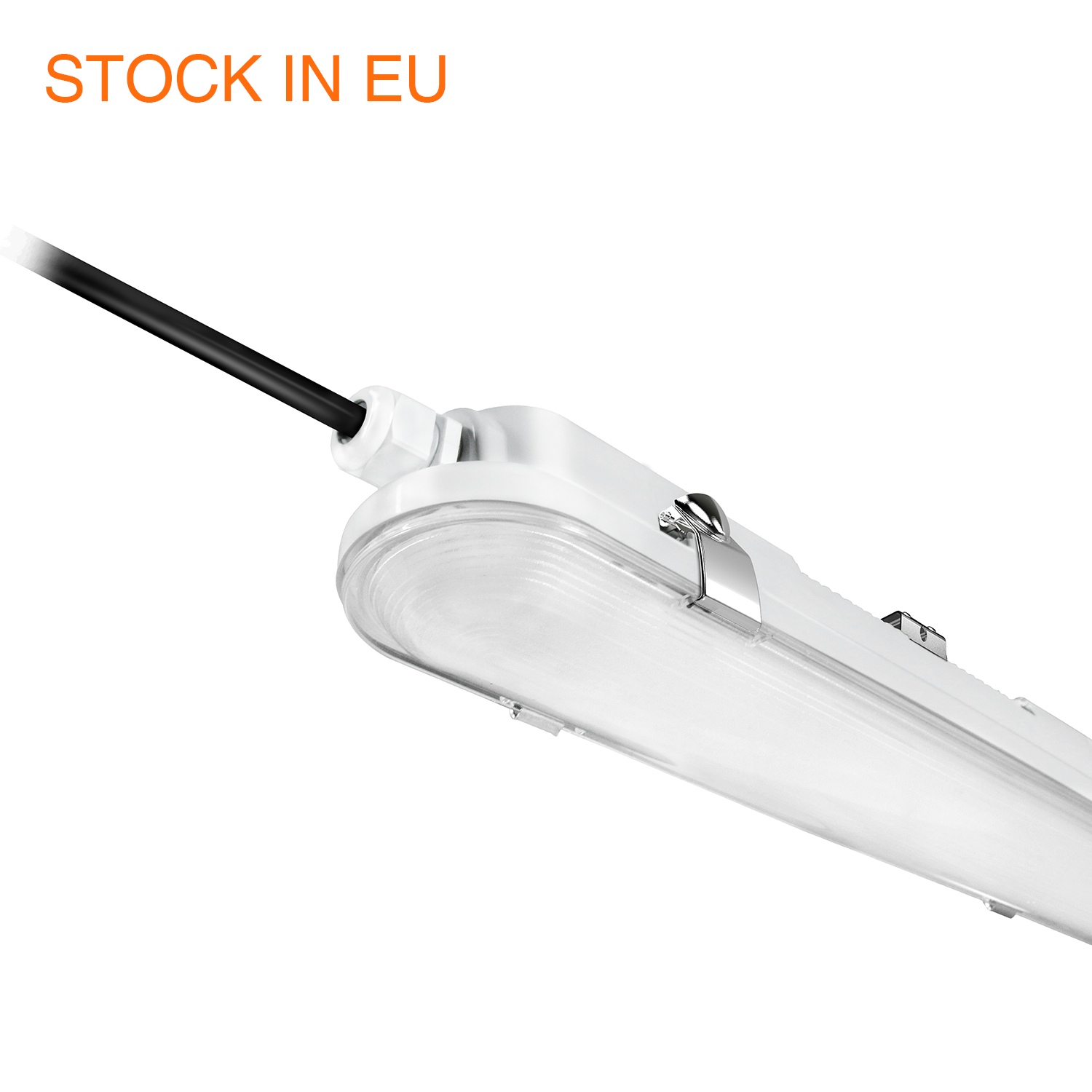

Superior Energy Efficiency That Delivers Long-Term Cost Savings

Superior Energy Efficiency That Delivers Long-Term Cost Savings

Energy efficiency in commercial and industrial lighting is not simply about choosing LED over fluorescent. It is about selecting a fixture that converts electrical power into useful light as effectively as possible, maintains that efficiency over its entire service life, and integrates with building management systems to avoid wasting energy when illumination is not needed. The 1500mm tri-proof is designed with all of these considerations built in from the ground up. The LED modules used in the 1500mm tri-proof achieve luminous efficacy figures that typically range from 120 to 160 lumens per watt, depending on the specific model and color temperature selected. This means that for every watt of electricity consumed, the fixture produces between 120 and 160 lumens of light output. By comparison, a T8 fluorescent tube system operating at the same wattage produces roughly 80 to 100 lumens per watt when the ballast losses are factored in. The practical result is that you can replace a 58-watt fluorescent fitting with a 36-watt or 40-watt 1500mm tri-proof and achieve equal or greater illumination levels on the working surface below. The driver electronics inside the 1500mm tri-proof are engineered to maintain a power factor above 0.9, which means the fixture draws current efficiently from the supply without creating reactive power losses that inflate your electricity bill. Total harmonic distortion is kept below 20 percent, protecting sensitive equipment elsewhere in the facility from electrical noise generated by the lighting system. Surge protection rated to 4kV is standard on many models, guarding the driver against voltage spikes that can shorten the lifespan of lesser fixtures. Over a rated lifespan of 50,000 hours, the LED modules in the 1500mm tri-proof maintain at least 70 percent of their initial lumen output, a performance standard known as L70. This means the fixture continues to deliver adequate illumination throughout its working life without the gradual dimming that characterizes aging fluorescent systems. When optional microwave motion sensors are added, the fixture can automatically reduce output to a standby level when no movement is detected in the monitored zone, then return to full brightness within seconds when activity resumes. In high-traffic areas with variable occupancy patterns, this single feature can reduce lighting energy consumption by 30 to 50 percent compared to a fixed-on installation. The combination of high efficacy, stable driver performance, long service life, and intelligent control options makes the 1500mm tri-proof a genuinely compelling investment for any organization looking to reduce its operational energy costs without compromising on light quality or reliability.

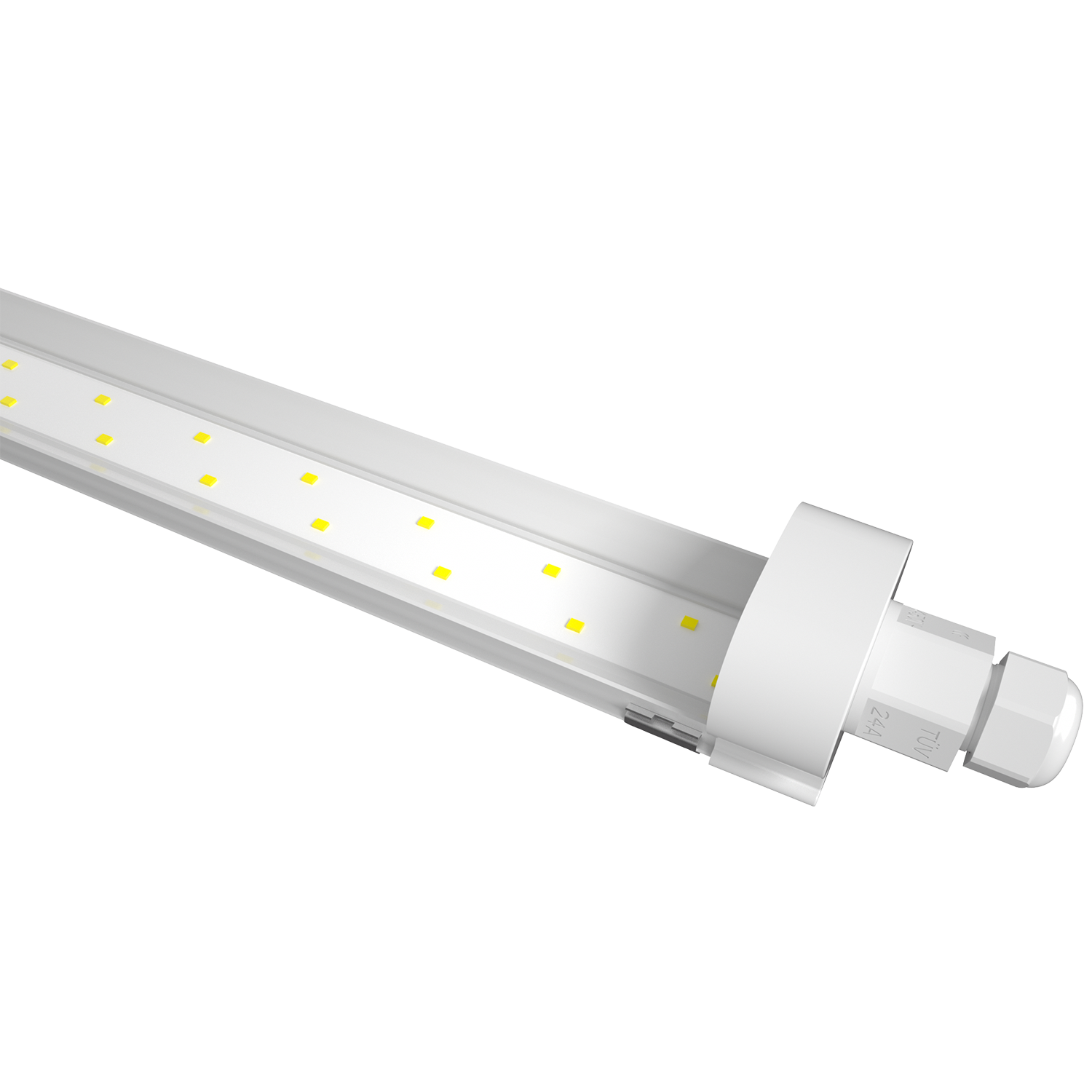

Versatile Installation and Smart Control Options for Every Application

Versatile Installation and Smart Control Options for Every Application

A lighting fixture that performs brilliantly in one specific scenario but struggles to adapt to different mounting configurations, control requirements, or operational environments has limited value in the real world. The 1500mm tri-proof is engineered with versatility as a core design principle, offering a range of installation methods, control integrations, and optional modules that allow it to serve effectively across a remarkably broad spectrum of applications. From a physical installation standpoint, the 1500mm tri-proof supports multiple mounting approaches. Surface mounting directly to a concrete or steel ceiling is the most common method, achieved through integrated mounting brackets that position the fixture flush against the overhead structure. Suspended installation using steel cables or chains is equally well supported, allowing the fixture to hang at a precise height above workbenches, conveyor lines, or retail display areas where directed illumination is more effective than ceiling-level mounting. Wall bracket mounting is available for applications such as stairwells, loading bays, and tunnel sidewalls where overhead mounting is not practical. The wiring entry points on the fixture are designed to accept standard conduit fittings, and the through-wiring capability on many models allows multiple fixtures to be daisy-chained from a single circuit, reducing installation time and cable costs significantly. The wide input voltage range, typically 100V to 277V AC at 50 or 60 Hz, means the same fixture model can be deployed in facilities across North America, Europe, Asia, and beyond without requiring region-specific variants. On the control side, the 1500mm tri-proof offers meaningful options that go well beyond a simple on-off switch. Microwave motion sensors integrated into the body of the fixture detect movement within a configurable detection zone and adjust output accordingly, delivering full brightness when the area is occupied and dropping to a preset standby level when it is not. This is particularly valuable in warehouses with aisle-based picking operations, parking structures with intermittent traffic, and corridors that are used only periodically throughout the day. Dimming capability via 0-10V analog control or DALI protocol allows the 1500mm tri-proof to participate in centralized building management systems, enabling scheduled dimming profiles, daylight harvesting integration, and remote monitoring of fixture status. Emergency backup modules can be factory-fitted or retrofitted to convert the standard fixture into a maintained or non-maintained emergency luminaire, ensuring that escape routes and critical work areas remain illuminated during a mains power failure. The combination of flexible mounting, broad electrical compatibility, and sophisticated control options means the 1500mm tri-proof can be specified with confidence for new construction projects, retrofit upgrades, and specialized installations alike, making it one of the most adaptable industrial luminaires currently available on the market.
