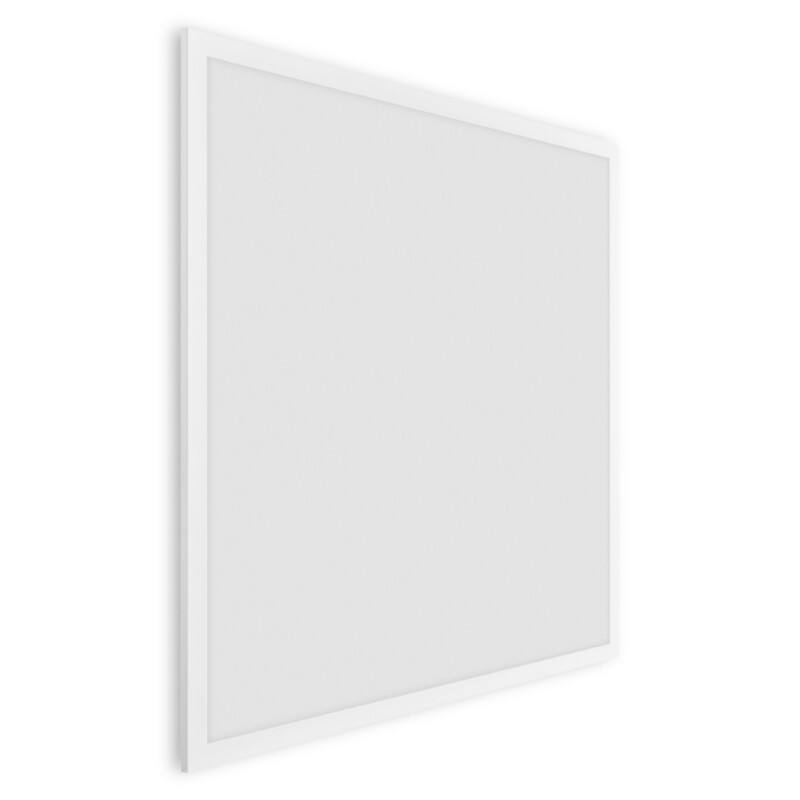

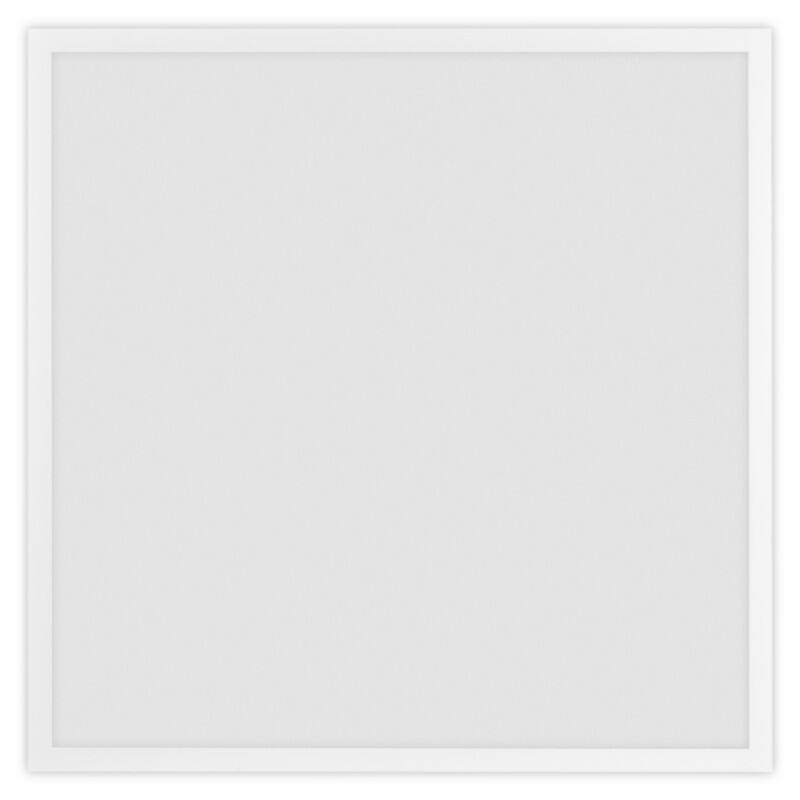

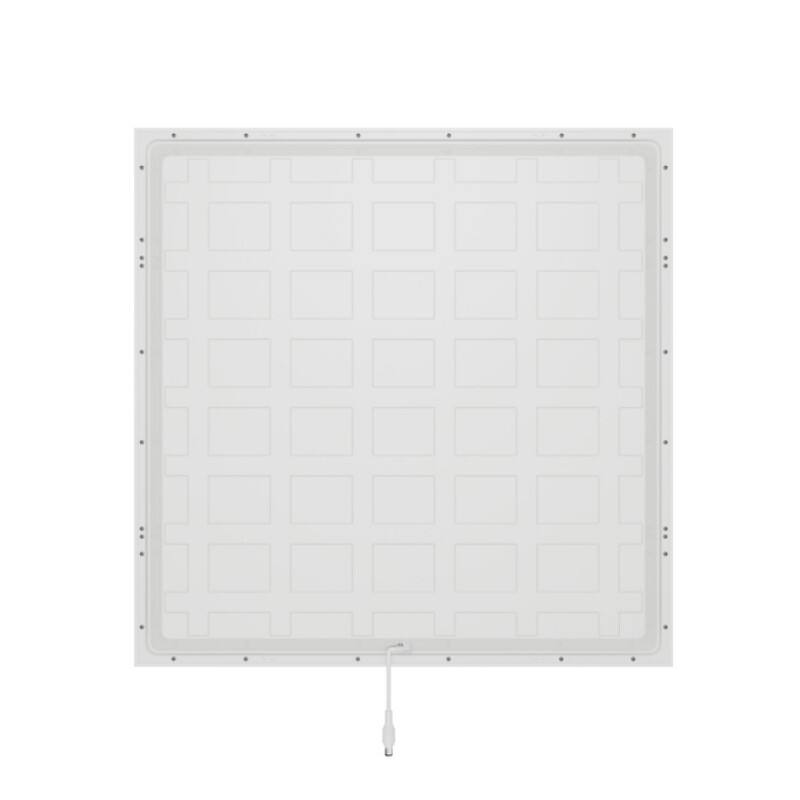

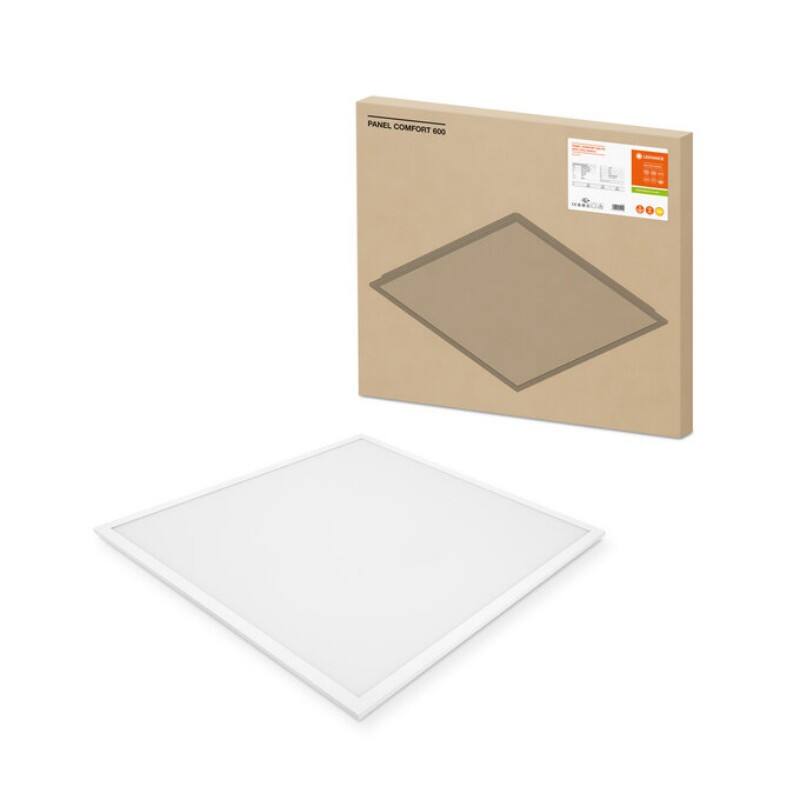

PL CMFT 600 P 28W 830 PS

Stock Quantity: 2113

Size(mm):1500x70x50mm

Power:70W

Luminous Flux: 9800 LM

Light Efficiency: 140 LM/W

CCT: 4000K

IP: 65

IK: 08

Linkable: Yes

Appurtenance:

Product Description
Parameters
Optional
Certificates
Images
Photometry and Lighting Design Documents
Bidding
Application
Country-specific Information
Recommended Products

Product benefits

Highly versatile due to selectable power steps (Power Select - PS) on the driver
Tool-free electrical connection due to push button connector
Through-wiring possible with included connector box
Energy savings thanks to high system efficacy: up to 130 lm/W
High color consistency with SDCM 3
Extended services such as energy monitoring and remote maintenance possible with DALI versions
External driver for extended flexibility and easy installation
Low flicker light thanks to special electronic control gear
Emergency lighting possible with LEDVANCE Emergency Conversion Box
5 years guarantee

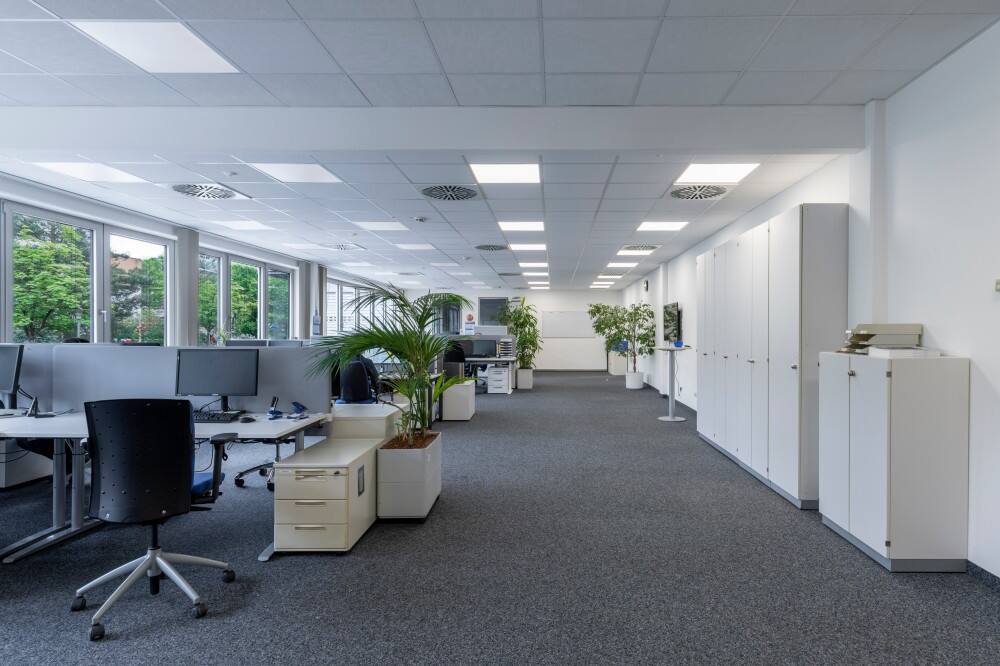

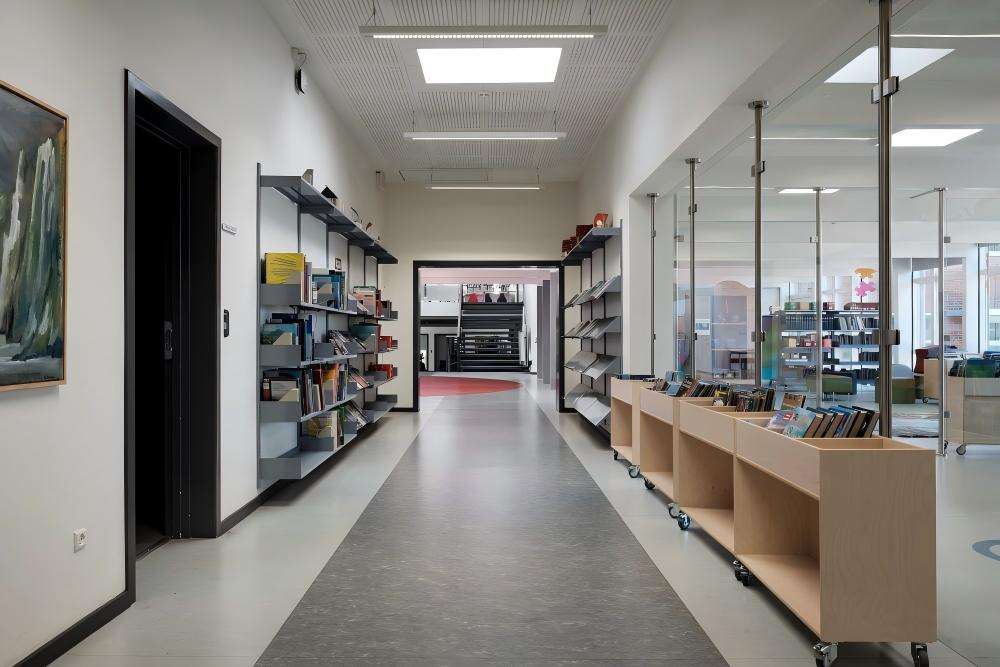

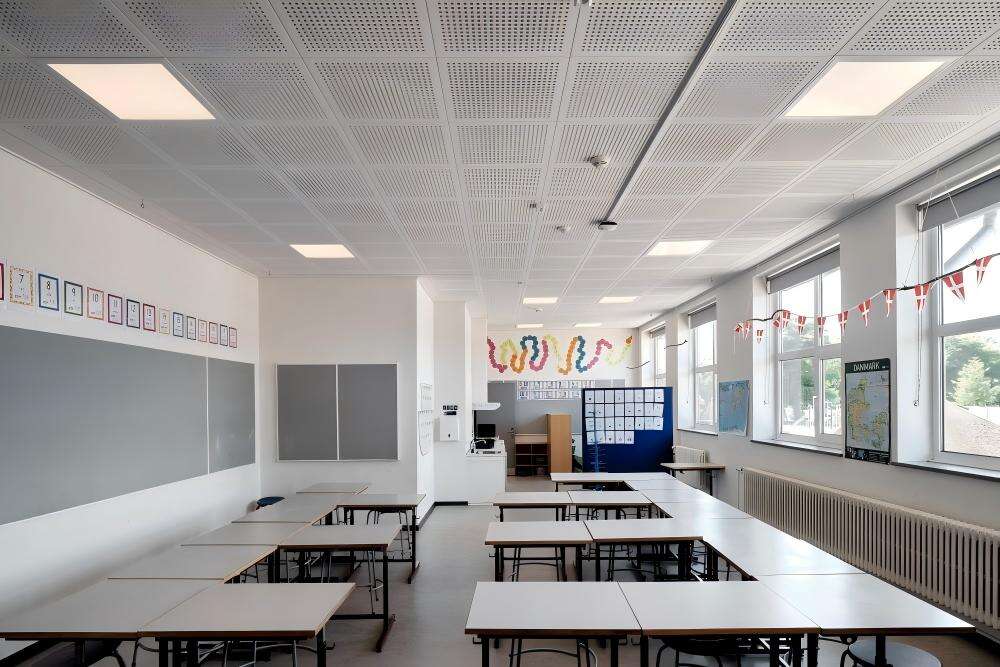

Areas of application

Direct replacement for recessed luminaires with fluorescent lamps
Offices, conference rooms
Reception areas, foyers, corridors, elevators
Suitable for recessed ceiling systems with grid size of 600 x 600 mm

Product features

Extruded aluminum frame
Polystyrene diffuser
5-pole terminal block, cable cross section up to 5 x 2.5 mm²
Luminaire versions with IoT-ready DALI-2 driver available
Lifetime (L80/B10): 70,000 h (at 25 °C)

Equipment / Accessories

Accessories for several mounting options available

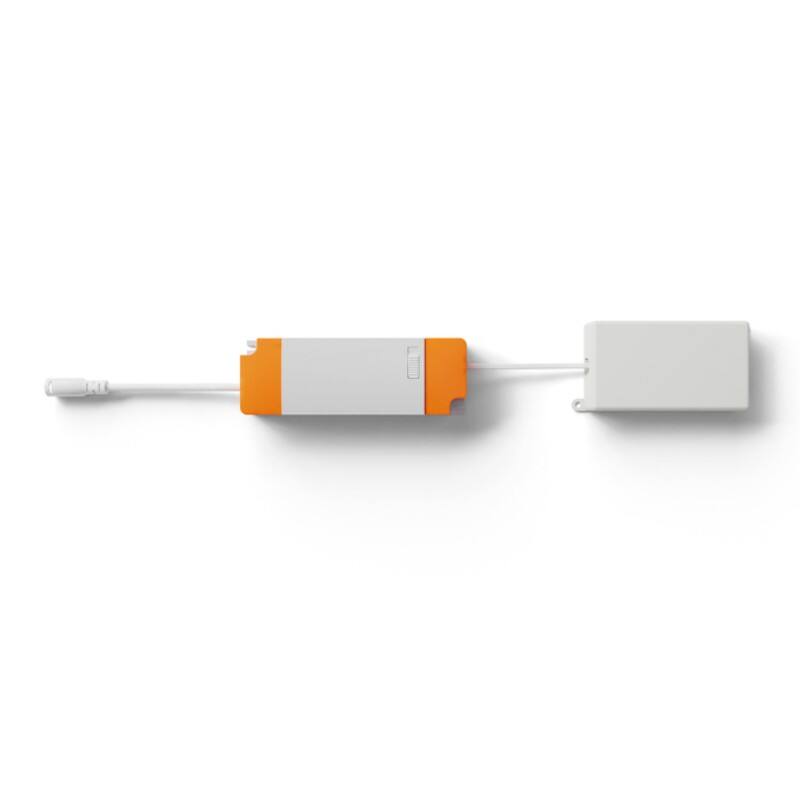

Connector box with 5-pole terminal included
Security rope for luminaire included
Security brackets preinstalled
External control gear included
Suitable for use with seperate Emergency Conversion Box

References / Links

For Guarantee see www.ledvance.com/guarantee

Parameters

Electrical data

Nominal wattage	28 W / 25 W / 22 W1）
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	125.000 mA
Inrush current	9 A
Inrush current time Th50	690 µs
Max. number of luminaires per miniature circuit breaker B16	14
Max. number of luminaires per miniature circuit breaker C10	15
Max. number of luminaires per miniature circuit breaker C16	24
Power factor λ	> 0.90
Total harmonic distortion	< 20 %
Protection class	II
Operating mode	External LED driver

Photometrical data

Luminous flux	3640 lm / 3250 lm / 2900 lm1）
Luminous efficacy	130 lm/W1）
Color temperature	3000 K
Light color (designation)	Warm White
Color rendering index Ra	> 80
Standard deviation of color matching	≤3 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	<1
Stroboscope effect metric (SVM)	< 0.4
Photobiological safety group acc. to EN62778	RG0
Beam angle	110 °

Dimensions & Weight

Length	595.00 mm
Height	32.00 mm
Width	595.00 mm
Product weight	1550.00 g

Materials & Colors

Product color	White
Housing color	White
RAL Color (most similar)	RAL 9003
Body material	Steel
Cover material	Polystyrene (PS)
Light emitting surface material	Polystyrene
Glow Wire Test according to IEC 60695-2-12	650℃
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-10…+50 °C
Temperature range at storage	-20…+80 °C
Type of connection	Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection	IP40/IP20
Protection class IK (shock resistance)	IK02
Dimmable	No
Mounting type	Recessed/Suspended/Surface
Mounting location	Ceiling
Application environment	Indoor
Mounting length	575 mm
Mounting width	575 mm
Mounting depth	50,0 mm
Adjustable	No
With light source	Yes
Replaceable light source	No

Lifespan

Lifespan L70/B50 at 25℃	100000 h1)
Lifespan L80/B10 at 25℃	70000 h1)
Lifespan L90/B10 at 25℃	48000 h
Number of switching cycles	50000

Control gear

Output current	620 mA
ECG - Output ripple current	< 5 %
ECG - Length	143 mm
ECG - Width	49 mm
ECG - Height	30 mm
Recommended control gear	OSRAM OTI DALI 50/220-240/1A4 NFC; Tridonic LCA 45W 500-1400mA one4all SC PRE

Emergency lighting

Type of Emergency Lighting (EL)

Optional EL unit (battery and controller) for decentral operation available separately

Certificates & Standards

Standards	CE, CB, ENEC, UKCA, EAC, EPD
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No
EPD	LEDV-00011-V01.01-EN
Replaceable light source (EPREL)	Not replaceable

Additional product data

Added function

MULTI SELECT

Product sheet relating to environmental qualities and characteristics

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 %1)
Minimum percentage of recycled content in the product	0 %1)
Product recyclability	Mostly recyclable product1)
Packaging recyclability	Mostly recyclable packaging1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Packaging Information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854014192	Folding box	52 mm x 622 mm x 649 mm	2005.00 g	20.99 dm³
	1
4099854014208	Shipping box	647 mm x 222 mm x 724 mm	9102.00 g	103.99 dm³
	4

Optional

Product image	Product name	EAN

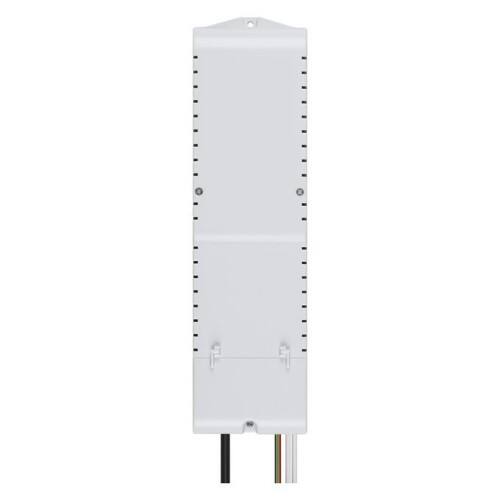

	EM CONVERSION BOX	4058075237025

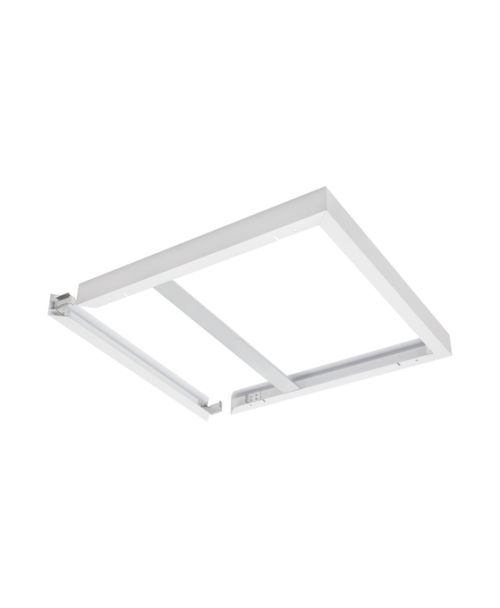

	PANEL 600 SURFACE MOUNT KIT H75	4058075472914
	PANEL 600 SURFACE MOUNT KIT H70 VAL	4058075402843

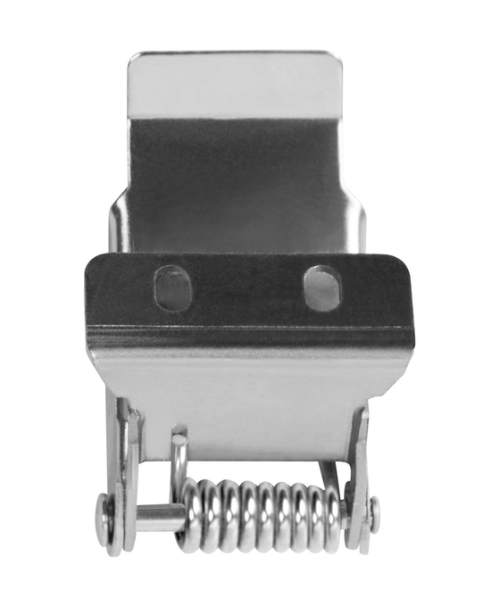

	PANEL RECESSED MOUNT CLIPS VAL 4x	4058075409859

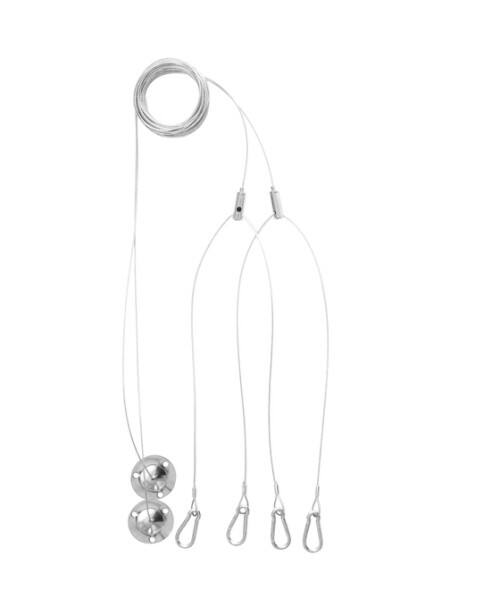

	PANEL Suspension Kit	4058075402928
